DMC, SMC series High voltage insulation member

Product Functions

◆Electrical Insulation: Provides excellent electrical insulating properties for high voltage components and systems.
◆Structural Support: Offers high mechanical strength for load-bearing insulation applications in electrical equipment.
◆Thermal Protection: Delivers heat resistance and flame resistance for safe operation in elevated temperature environments.
◆Moisture Barrier: Low water absorption (≤0.1%) ensures reliable performance in humid conditions.
◆Anti-Condensation: Superior anti-condensation properties prevent moisture-related failures in varying environmental conditions.

Applicable Environment

◇Electrical Systems: Suitable for high voltage insulation applications in power distribution and transmission equipment.
◇Temperature Range: Performs reliably in applications requiring heat resistance and thermal stability.
◇Humidity Conditions: Low water absorption enables operation in high-humidity environments without performance degradation.
◇Industrial Settings: Ideal for manufacturing environments requiring flame-resistant materials.
◇Outdoor/Indoor Use: Anti-condensation properties suit both indoor and protected outdoor installations.

Product Highlights

◆Superior Material Composition: SMC combines resin paste with chopped glass fibers and specialized additives, creating a molding compound with exceptional electrical and mechanical properties that epoxy products cannot match.
◆Excellent Electrical Insulation: Engineered for high voltage applications with outstanding dielectric properties, ensuring reliable isolation and protection in electrical systems.
◆High Mechanical Strength: Features bending strength ≥120MPa and impact strength ≥50 KJ/m², providing robust structural integrity for demanding applications.
◆Superior Environmental Resistance: Ultra-low water absorption (≤0.1%) and excellent anti-condensation properties ensure long-term reliability in humid conditions.
◆Flame & Heat Resistant: Inherent flame resistance and heat resistance make it ideal for applications requiring fire safety and thermal stability.
◆Long Service Life: Advanced material formulation ensures extended operational life, reducing replacement frequency and maintenance costs.
◆Precision Manufacturing: Available in controlled thickness (1.8-2.2mm) with consistent quality, no debris, and Barcol hardness ≥55 for reliable performance.

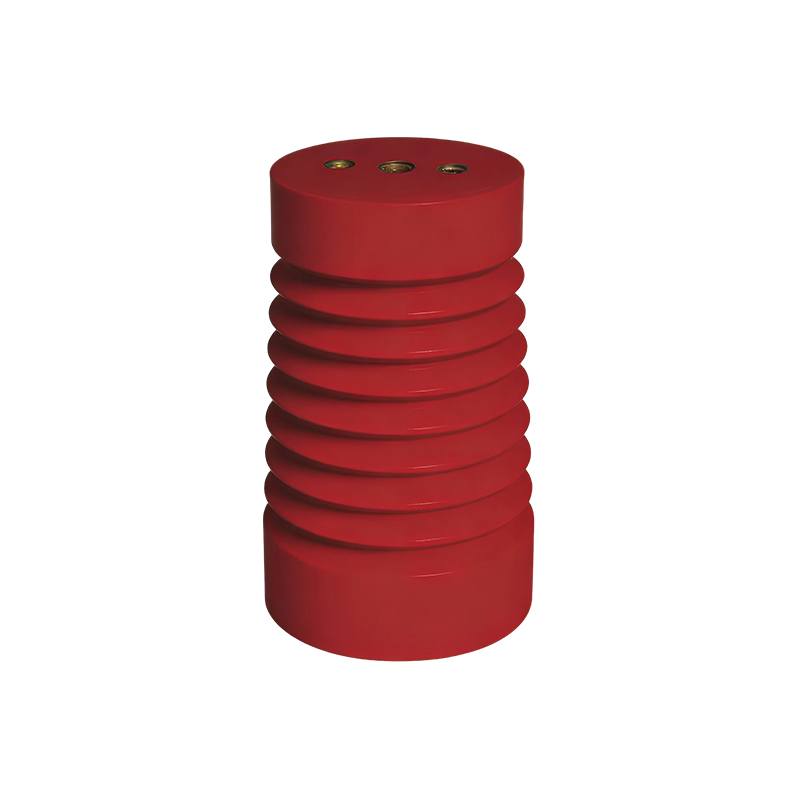

◆Versatile Application: Suitable for various high voltage insulation components including bushings, supports, barriers, and structural insulation parts.

Finished products

1. Pressure: 5.5-7.0 KV/min, no flashover, breakdown;
2. Creepage distance: >240mm;
3. Strength: insulator 30000N, rod 13000N, insulating rod 10000N;
4. PD: <3P.C;
5. Lightning impulse withstand voltage: 84KV;
