GGD series PV Grid-Connected Cabinet

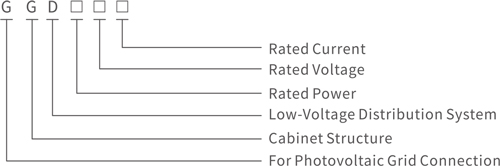

Product Model
Technical Parameters
|
Serial Number |
Project Name |
Unit |
Technical Parameters |
|
|
1 |
Rated Operating Voltage |
V |
AC400、690、800 |
|
|
2 |
Auxiliary Circuit Rated Voltage |
V |
AC220、380(400)/DC110、220 |
|
|
3 |
Rated Current |
A |
4000、3200、3150、2500、2000、1600; |
|
|
4 |
Grid-Connected Power |
kW |
50、100、150、200、250、300、400、500、600、800、1000 |
|
|
5 |
Rated Power |
Hz |
50(60) |
|
|
6 |
Rated Insulation Voltage |
V |
1000 |
|
|
7 |
Busbar Rated Short-Time Withstand Current |
kA/1s |
70 |
|
|
8 |
Busbar Rated Peak Withstand Current |
kA/0.1s |
174 |
|
|
9 |
Power Frequency Test Voltage |
Main Circuit |
V/1min |
2500 |
|
Auxiliary Circuit |
1760 |
|||
|
10 |
AC Lightning and Surge Protection |
|
Available, In:20kA;lamx:40kA;Up:≤4kV |
|
|
11 |
Protection Level |
|
IP65、IP54、IP43、IP41、IP31、IP30(Optional) |
|

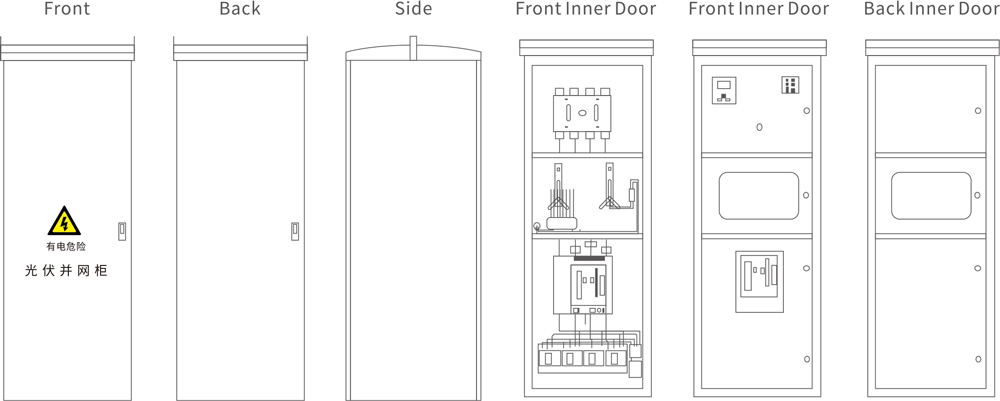

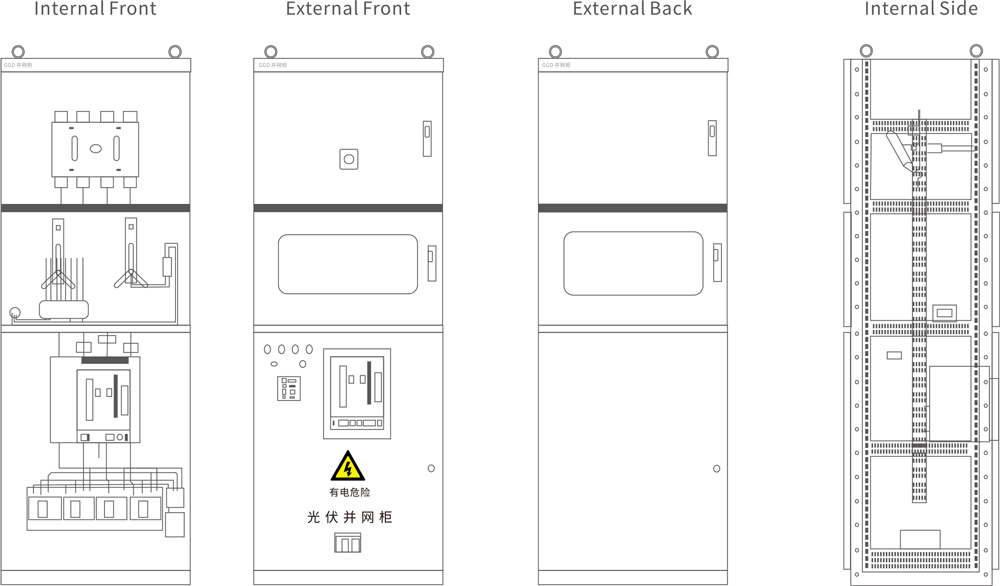

Cabinet External Dimensions and Installation Diagram
Cabinet Basic External Dimensions
|
Serial Number |
External Dimensions (Unit: mm) |
Grid-Connected Power (kW) |
Remarks |
||
|
Cabinet Width |
Cabinet Height |
Cabinet Depth |
|||
|
1 |
600 |
2200/2000 |
600 |
200 and below |
Reserved for power bureau metering position |
|
2 |
800 |
2200/2000 |
600 |
250-400 |
|
|
3 |
800 |
2200/2000 |
800 |
500-600 |
|
|
4 |
800 |
2200/2000 |
800/1000 |
800 |
|
|
5 |
800 |
2200/2000 |
1000 |
1000 |
|

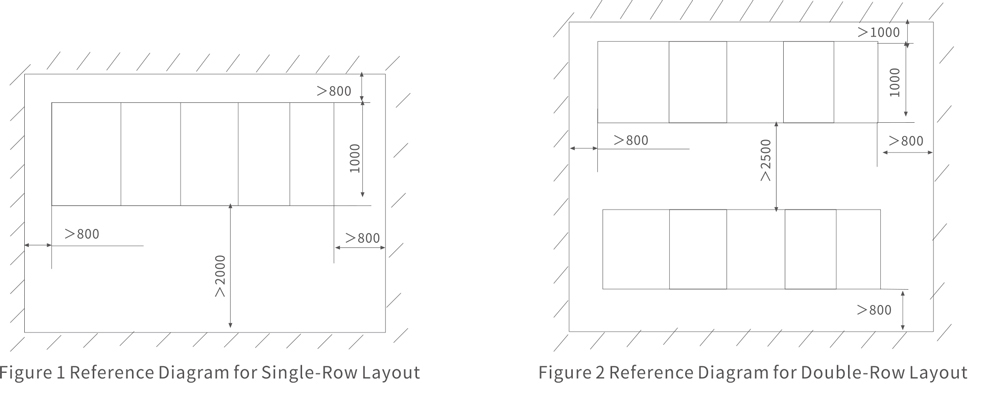

Installation Diagram

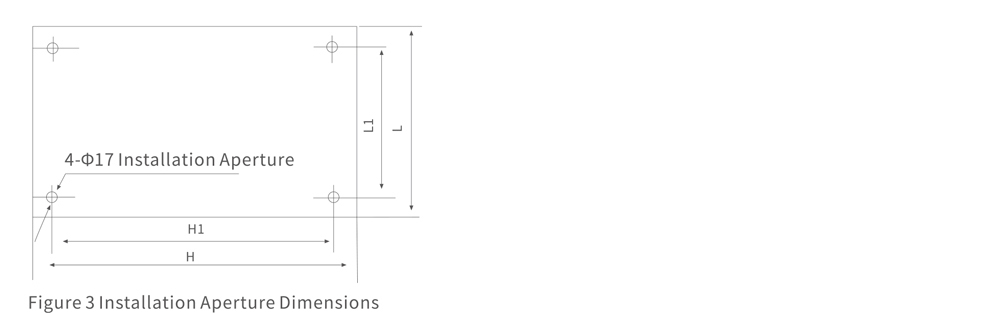

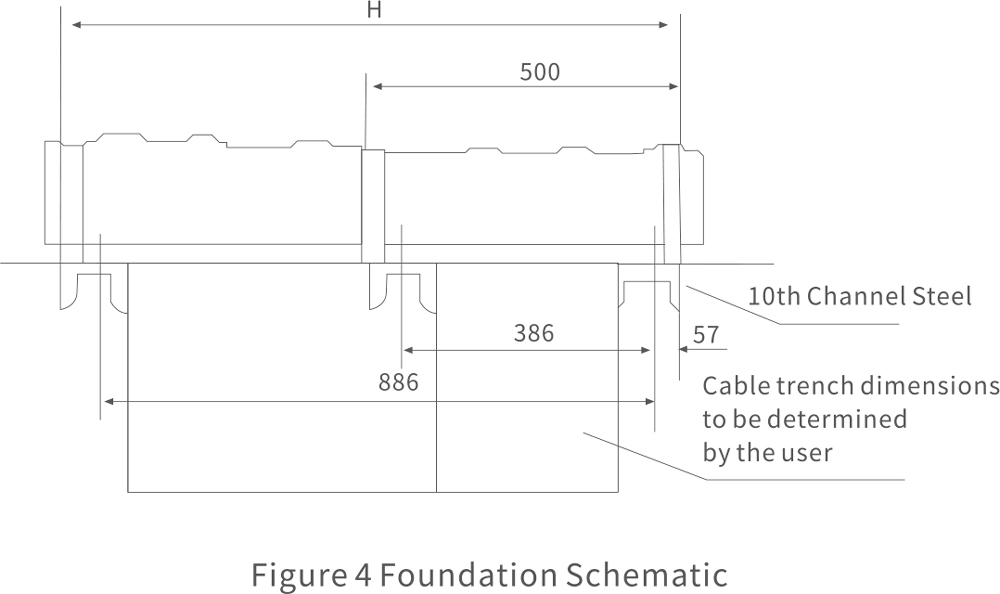

Installation and Foundation Forms
|
Dimensions L |
Dimensions H |
Dimensions L1 |
Dimensions H1 |
|
600 |
800 |
486 |
686 |
|
1000 |
486 |
886 |
|
|
800 |
800 |
686 |
686 |
|
1000 |
68 |
886 |
|
|
1000 |
800 |
886 |
686 |
|
1000 |
886 |
886 |
Product Functions
◆Serves as the main distribution and connection point between the PV system and the power grid.
◆Connects centralized inverters or AC combiner boxes to step-up transformers.
◆Provides secondary lightning protection.
◆Supports additional functions like metering, protection, and remote control per customer requirements.
Applicable Environment
◇Ambient Temperature: -20℃ to +40℃ (24h avg≤+35℃).
◇Relative Humidity: ≤70% at 40℃; allows for higher humidity at lower temperatures.
◇Altitude: ≤3000 meters.
◇Installation Slope: Vertical tilt≤5°.
◇Atmosphere: Clean air, free from explosive or corrosive substances.
◇Note: Consult the manufacturer for conditions outside these ranges.
Product Highlights
◆High Compatibility: Suitable for various ground-mounted PV system configurations.
◆Flexible Configuration: Incoming/outgoing lines can be connected via circuit breakers or directly; busbars are electroplated/purified.
◆Robust & Safe: Features high breaking capacity, good dynamic/thermal stability, and a simple, secure structure.
◆Dual Protection: Available in IP40 (indoor) and IP65 (outdoor) protection levels.
◆Convenient Maintenance: Designed for easy on-site wiring and service.
◆Standards Compliant: Meets national GB and international IEC standards.
Installation Instructions
◇Install on a foundation of concrete-embedded channel steels per electrical equipment codes and design drawings.
◇Secure each cabinet by welding or bolting to the channel steel.
◇For multi-cabinet installations, follow standard distribution cabinet alignment guidelines.
◇Ensure reliable connection of all inter-cabinet wiring, sampling points, and grounding protection lines.
