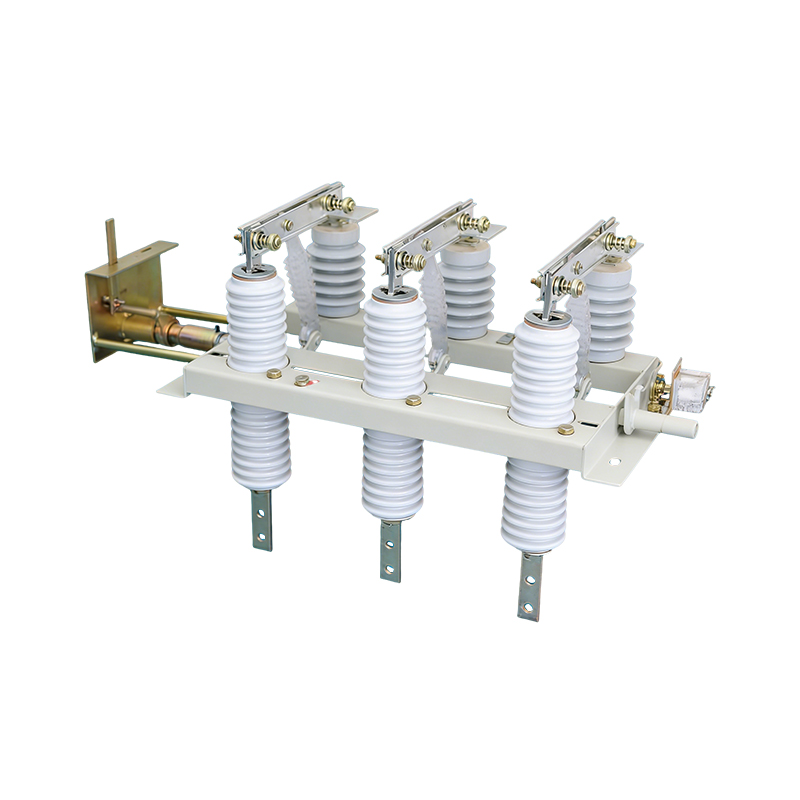

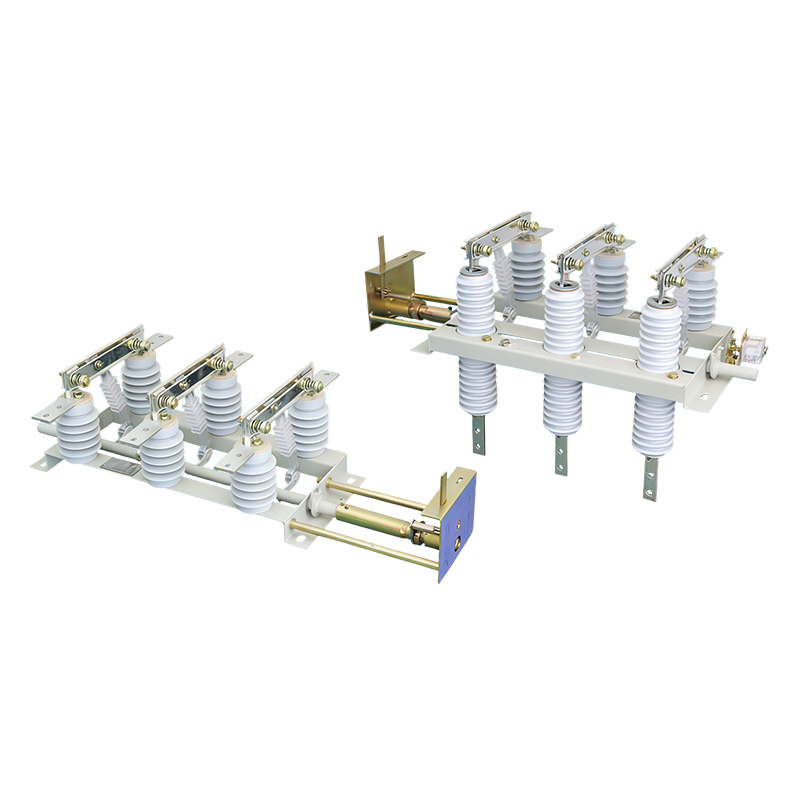

GN19-12M Indoor High Voltage Disconnect Switch
Technical specification
|
Model |
Rated Voltage(KV) |
Rated Current(V) |
4s thermal stability current (KV) |
Dynamic current(KA) |
|
GN19-10CM/400-12.5 |
12 |
400 |
12.5 |
31.5 |
|
GN19-10CM/630-20 |
12 |
630 |
20 |
50 |
|
GN19-10CM/1000-31.5 |
12 |
1000 |
31.5 |
80 |
|
GN19-10CM/1250-40 |
12 |
1250 |
40 |
100 |

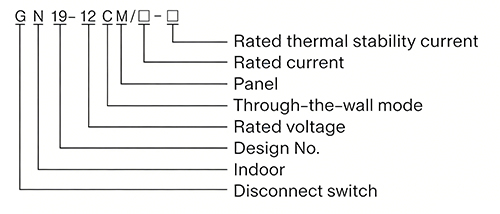

Product Model

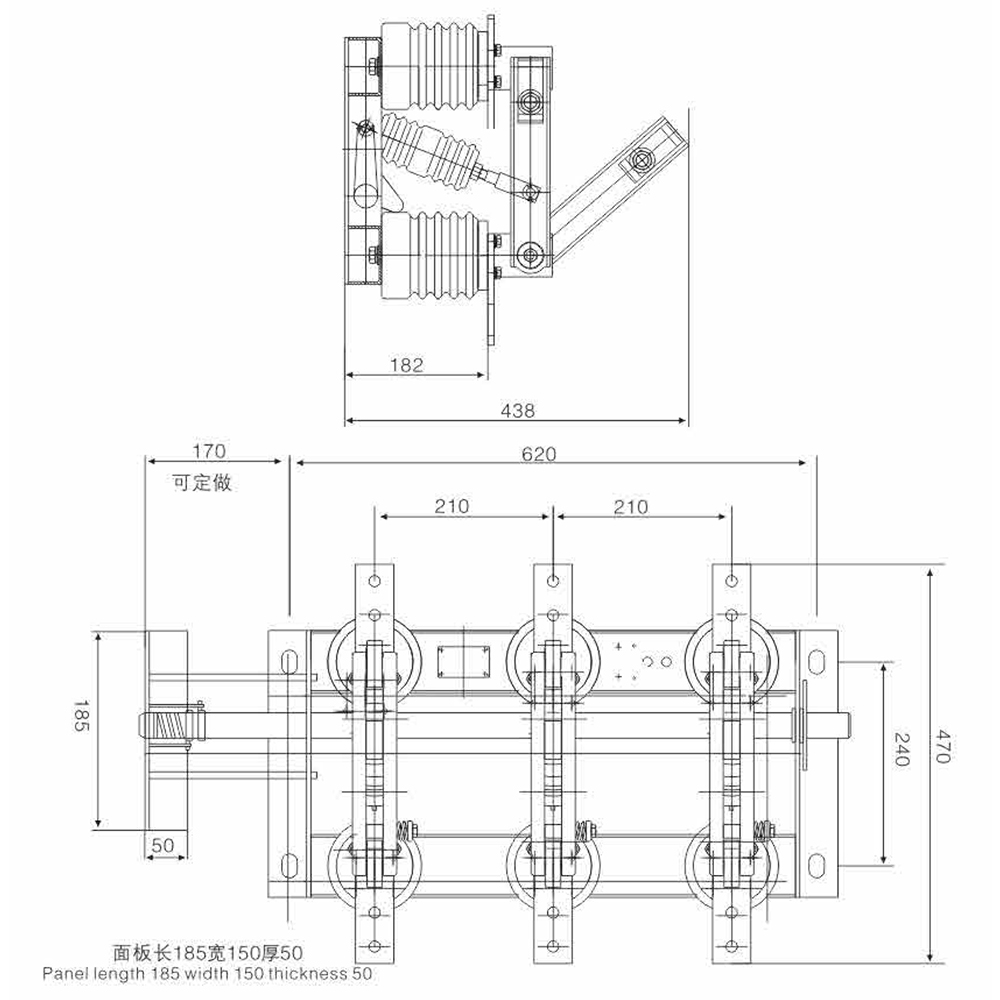

Dimension
Product Functions
◆Visible Circuit Isolation: Provides clear physical disconnection for safe maintenance and repair work on de-energized circuits.
◆No-Load Switching: Capable of making and breaking circuits under no-load conditions while withstanding rated voltage across the open contacts.
◆Manual Operation: Designed for reliable operation with the CS6-1 manual operating mechanism, ensuring positive contact movement and visual confirmation of position.
◆Voltage Withstanding: Maintains dielectric strength across open contacts to ensure complete isolation from energized systems.
◆Status Indication (Optional): Available with electrified display option for visual indication of line status.
Applicable Environment
◇Rated System: Suitable for 12kV, 50Hz three-phase AC indoor power systems (and lower voltages).
◇Temperature Range: Reliable operation in ambient temperatures from -25℃ to +40℃.
◇Installation Altitude: Standard design for elevations up to 1000 meters.
◇Humidity Tolerance: Withstands monthly average humidity ≤90% and daily average ≤95%.
◇Seismic Resistance: Capable of withstanding earthquake intensity up to 8 degrees.
◇Air Quality: Suitable for locations free from fire, explosives, corrosives, and severe vibration.
Product Highlights
◆Application-Specific Variants: Available in pollution abatement type for industrial areas, high altitude type for above 1000m, and with electrified display for visual safety.
◆Proven Manual Operation: Features the CS6-1 manual mechanism, providing reliable action with clear visual contact position indication for operator confidence.
◆Cost-Effective Isolation: Offers essential disconnecting functionality at an economical price, ideal for budget-conscious projects without compromising reliability.
◆Simple Maintenance Design: Straightforward construction enables easy inspection and maintenance of contacts and mechanisms, reducing downtime and service costs.
◆Compact Indoor Footprint: Space-efficient design allows easy installation in crowded switchgear compartments and existing panel layouts without major modifications.
◆Versatile Application Range: Suitable for various indoor installations including distribution panels, substations, and industrial power centers requiring visible disconnect capability.
