Indoor high voltage vacuum circuit breaker series

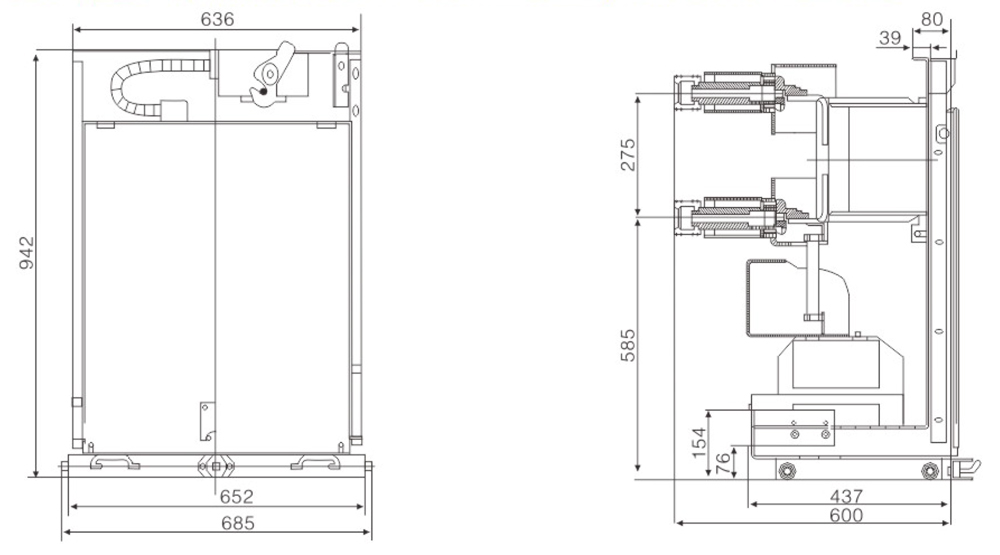

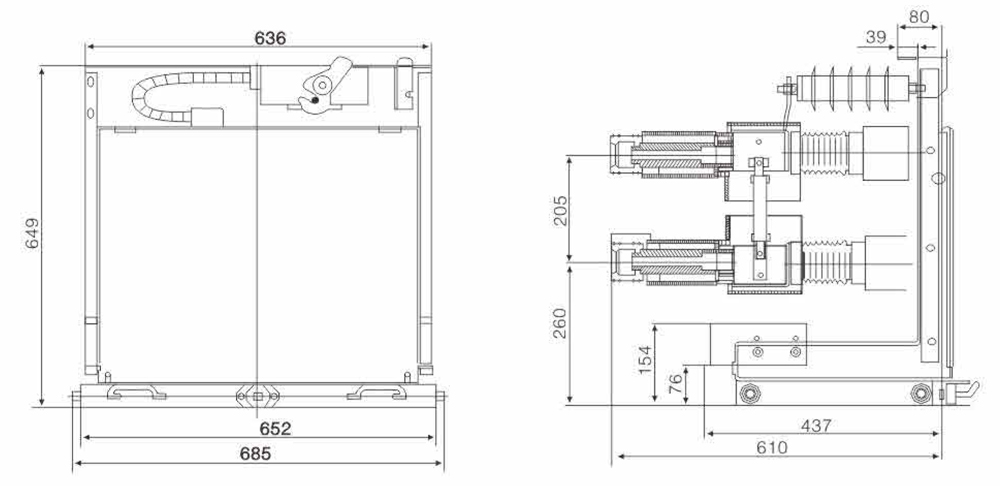

Dimensions

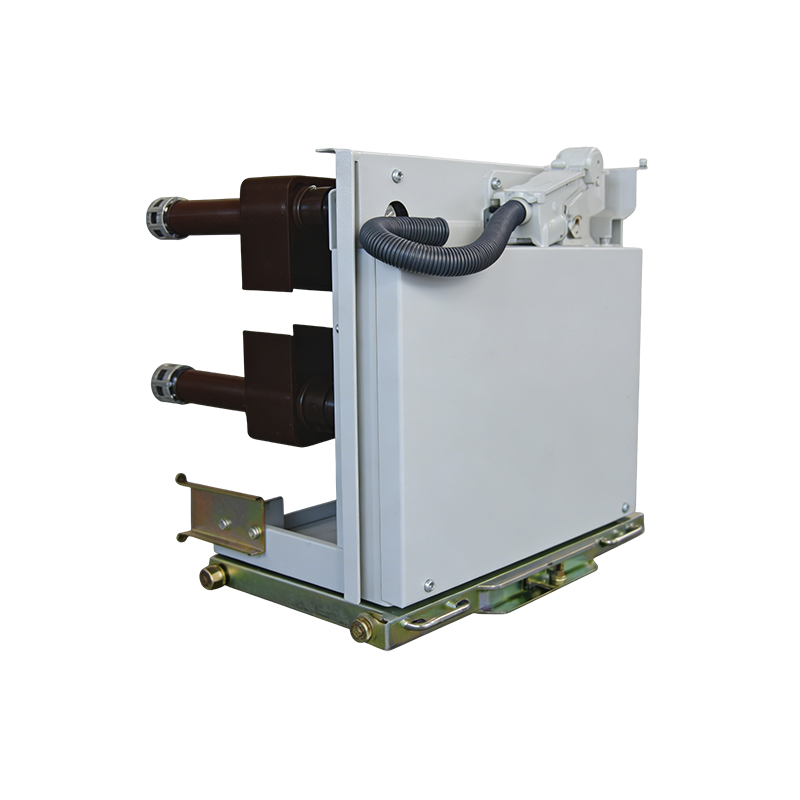

Fuse handcart

This model fuse press XRNP-10 type configuration

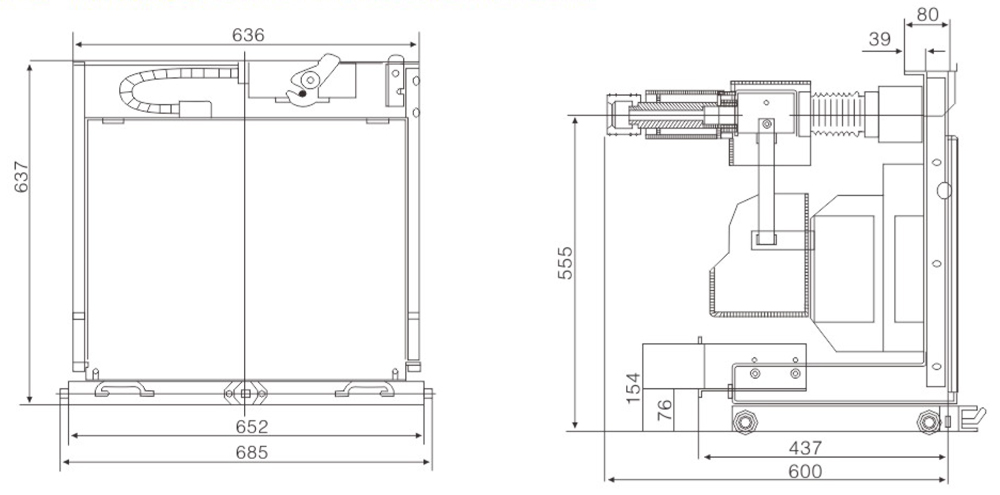

630A~1250A isolation + PT handcart

The 630A~1250A isolation + PT handcart belongs to the indoor high-voltage vacuum circuit breaker series and is suitable for JDZX10-10C voltage transformers equipped with XRNP-10 type fuses. It integrates isolation and voltage transformation functions, and features stable signal transmission and reliable isolation, making it suitable for medium-current indoor power distribution systems.

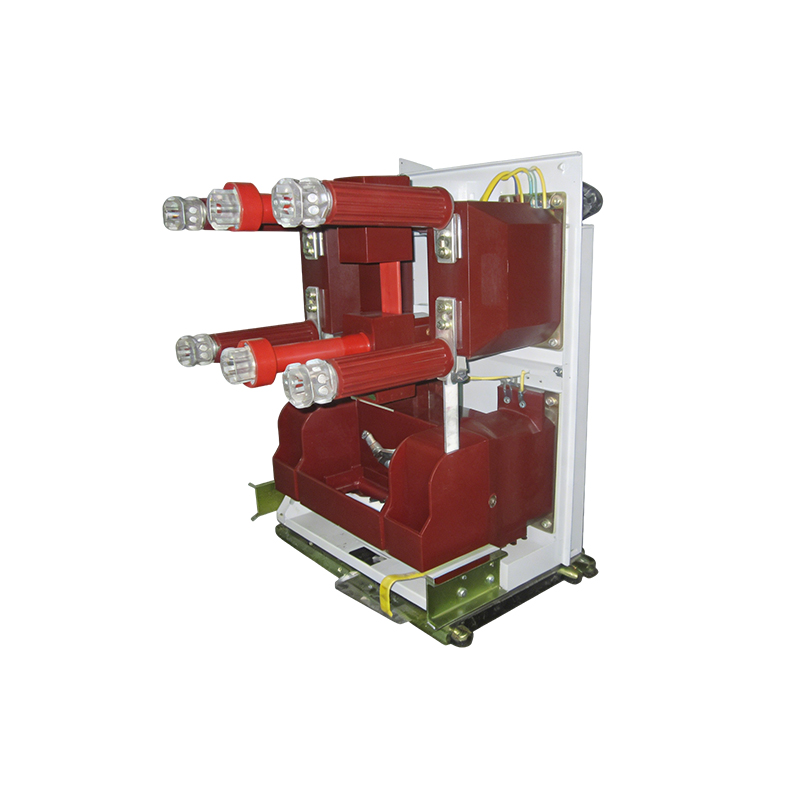

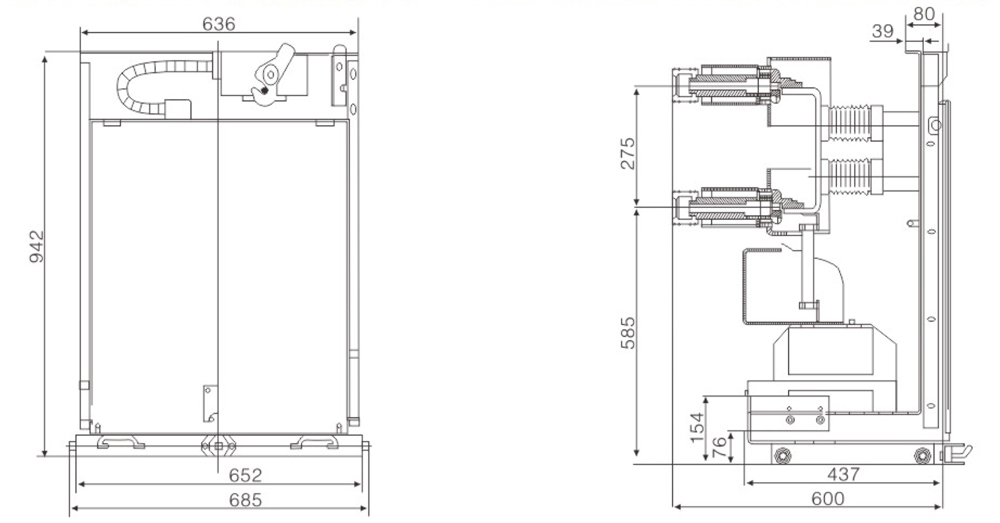

630A~1250A metering handcart

The Indoor high voltage vacuum circuit breaker series offers the 630A~1250A metering handcart, applicable to JDZ(X)10-C type voltage transformers and LZZBJ9-12/150b/2 type current transformers, with XRNP-10 type fuses. It realizes high-precision electric energy metering, stable operation and strong compatibility for power metering links.

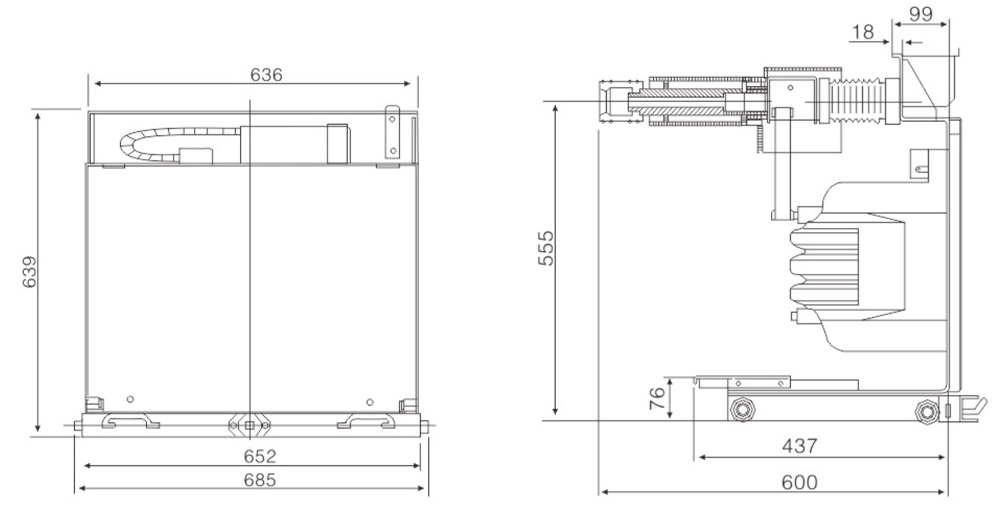

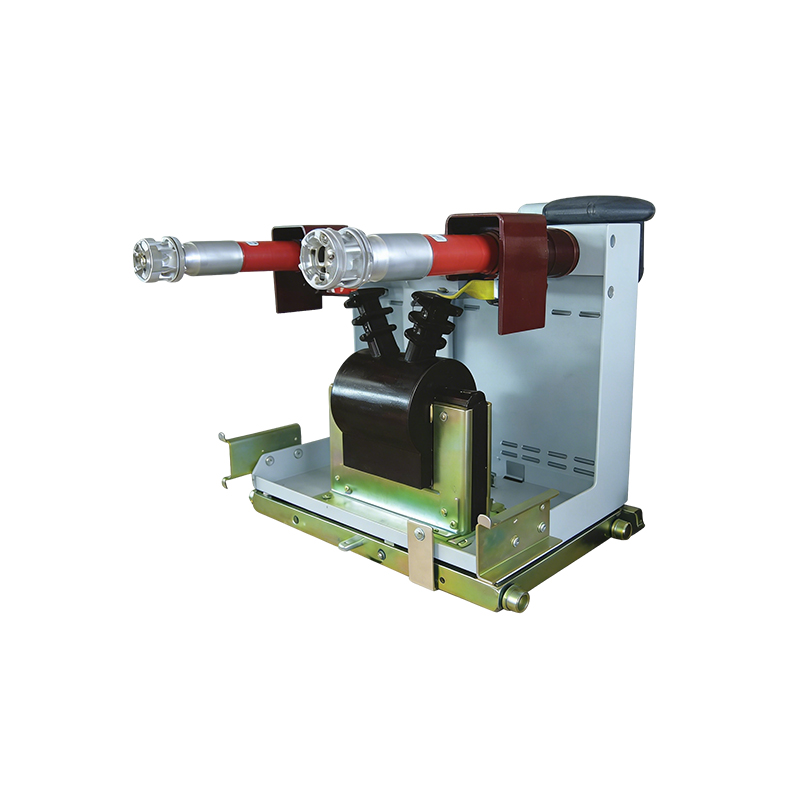

Center PT handcart

The Center PT handcart, a vital model of the Indoor high voltage vacuum circuit breaker series, applies to JD(X)10-10C and JDZX10 type voltage transformers, with detachable container for XRNP-10 or RN2-10 type fuse press. It features flexible configuration, stable voltage conversion and strong adaptability.

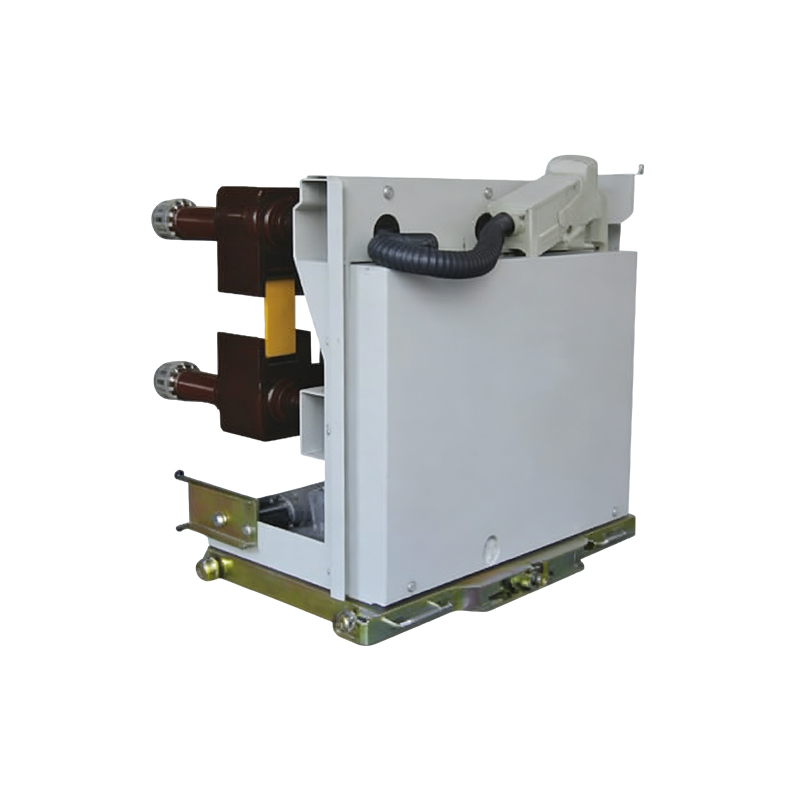

The Indoor high voltage vacuum circuit breaker series includes the 630~1250A isolation handcart, a dedicated isolation component for medium-current systems. It has high insulation strength, reliable isolation performance, smooth operation and strong compatibility, ensuring safe maintenance of power equipment.

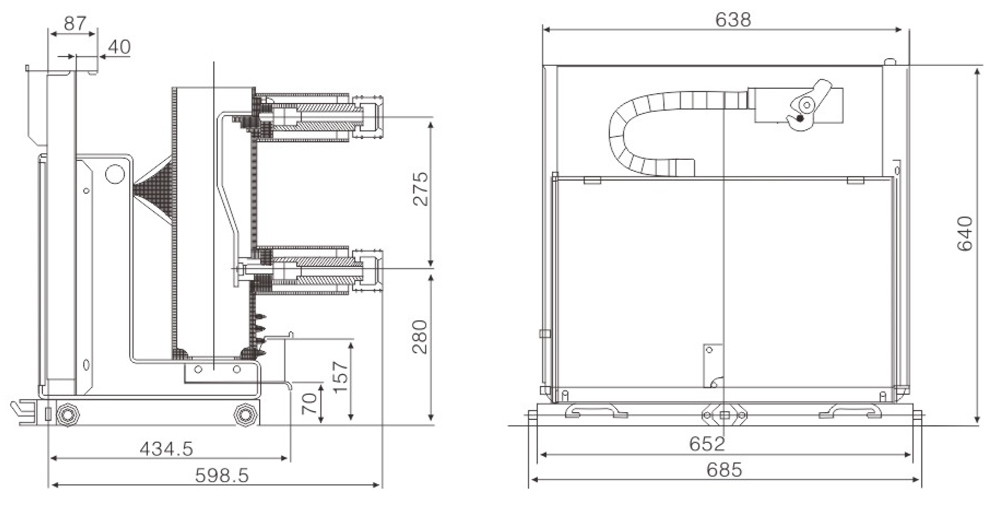

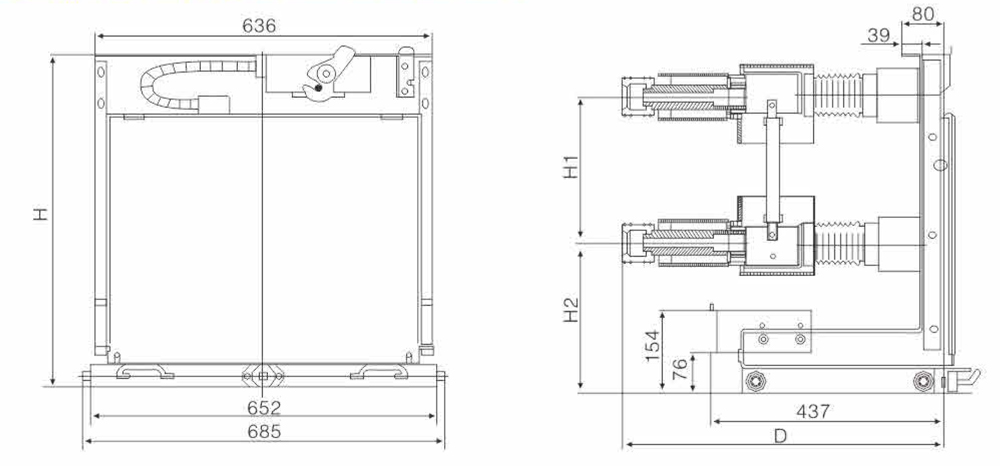

630~1250A isolation handcart

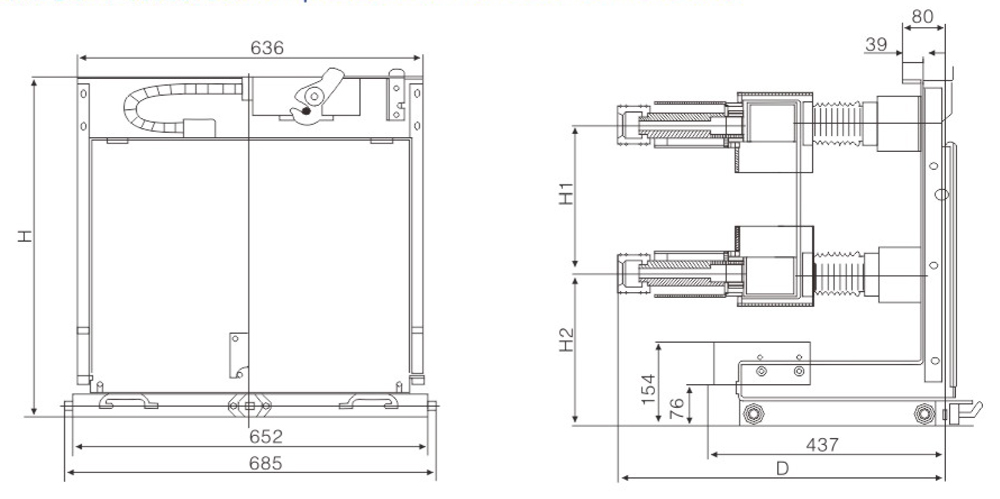

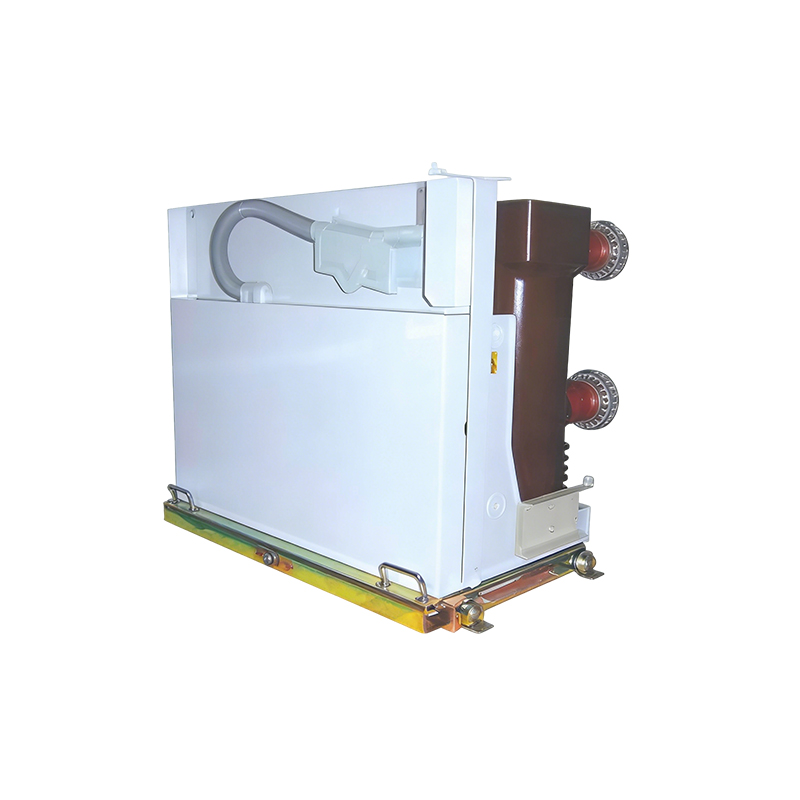

2000A~3150A isolation handcart

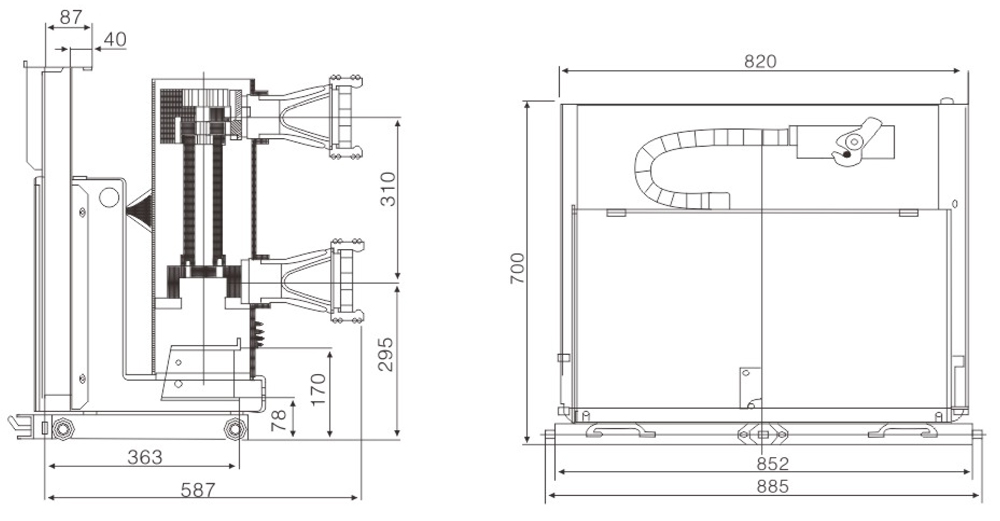

4000A isolation handcart

Simple isolation handcart

If the rated current of 1600A~4000A Simple isolation handcart, when ordering an additional proof.
