LG · KCS Seriec Reactive Dynamic Regulator (capacitive Contactless Switch)

LG.KCS series contactless capacitive switch is a kind of electronicpower device which can switch the parallel power capacitor quickly.Its main electric structure includes high power antiparallel thyristormodules, isolation circuit, trigger circuit, common-frequency circuit.protecting circuit and driving circuit. The wiring terminals for thecontrolling of switch-on or switch-off are also fitted, so as to controlthe logic voltage (switch-off) and 12V(switch-on). This switchinghas the characteristics of easy installation, simple maintenance,short responding time, no-current switching, noiseless operating,robustness, phase loss protection and so on. Also it is an ideal deviceof switching capacitor unit for reactive power dynamic compensating
device.

    Contact us
    Product Details
    Product Details

    Model and Its Meaning


    序号No. Description
    ① Enterprise code
    ② Product category code
    ③ 1A-Can only control one group of three-phase capacitor
    3F-Can only control three groups of single-phase capacitor
    ④ Voltage class: such as 0.4KV
    ⑤ Maximum controllable reactive power: such as 10KW
    ⑥ For single-phase,For three-phase

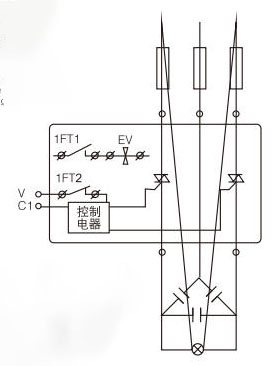

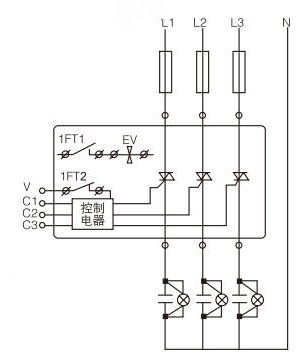

    Wiring Diagram

    2.jpg            3.jpg


    echnical parameter

    Rated voltage:380(220V)
    Rated frequeny:50Hz
    Control capacity:380V:1~30(Kvar),220V:1 x3~10 x3(Kvar)

    Product Selection

    Model Capacitance type Rated voltage Maximum drive Capacity Corresponding  speed Maximum drive Capacity

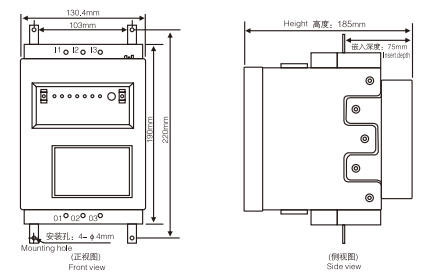

    LG · KCS3F-0.23-30KVar Single-phase compensating capacitor AC220V 3x10KVar 130.4mm(width)
    190mm(length)
    185mm(thickness)    		 103mm x 220mm
    LG · KCS1A-0.4-25KVar Three-phase compensating capacitor AC380V 25KVar
    LG ·KCS1A-0.4-30KVar Thre-phase compensating capacitor AC380V 30KVar

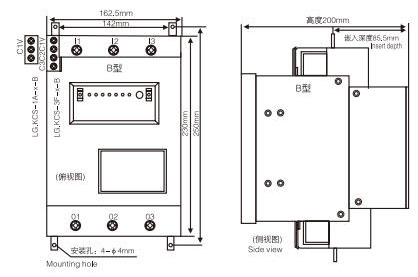

    LG . KCS3F-0.23-45KVar-B Single-phase compensating capacitor AC220V 3x15KVar 162.5mm(width
    230mm(length)
    200mm(thickness)    		 142mmx250mm
    LG .KCS3F-0.23-60KVar-B Single-phase compensating capacitor AC220V 3 x20KVar
    LG . KCS1A-0.4-40KVar-B Three-phase compensating capacitor AC380V 40KVar
    LG . KCS1A-0.4-60KVar-B Three-phase compensating capacitor AC380V 60KVar
    LG . KCS1A-0.4-80KVar-B Three-phase compensating capacitor AC380V 80kVar
