LGBSMJ Self-Healing Cylindrical Capacitor

LGBSMJ series cylindrical low voltage self-healing power capacitor is mainly used in 50/60Hz power systems to improve power grid quality, increase the power factor and reduce line loss.

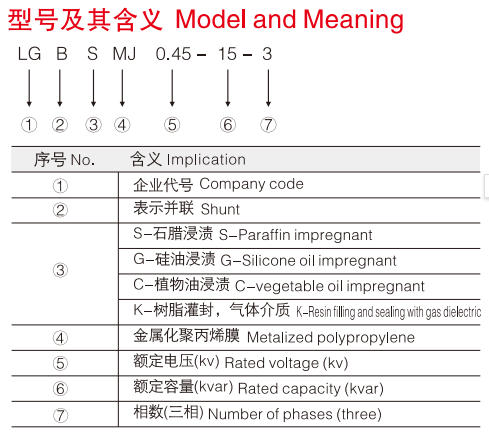

    Model and meaning.jpg

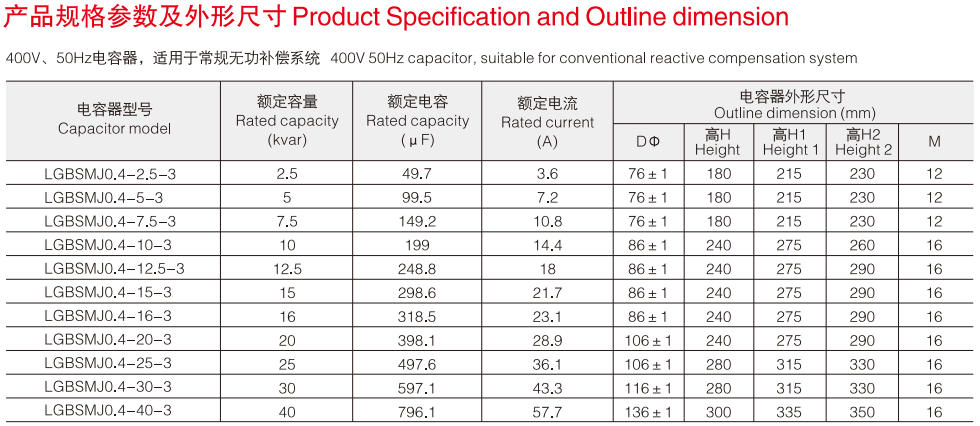

    Product specifications and dimensions.jpg

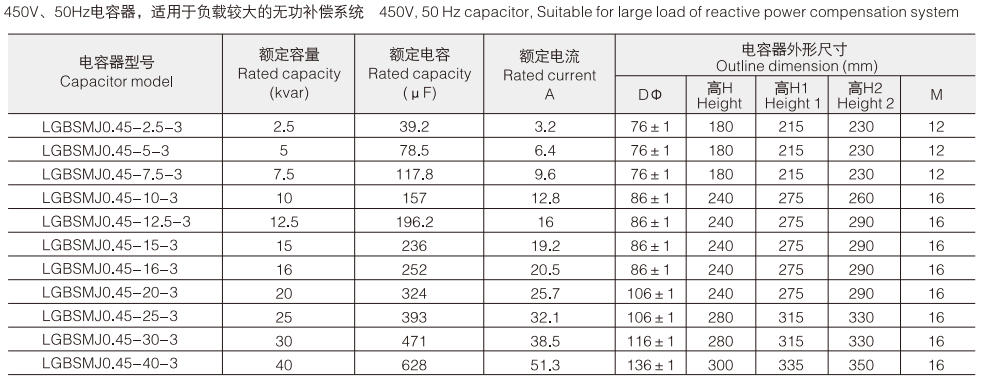

    Product specifications and dimensions.2.jpg

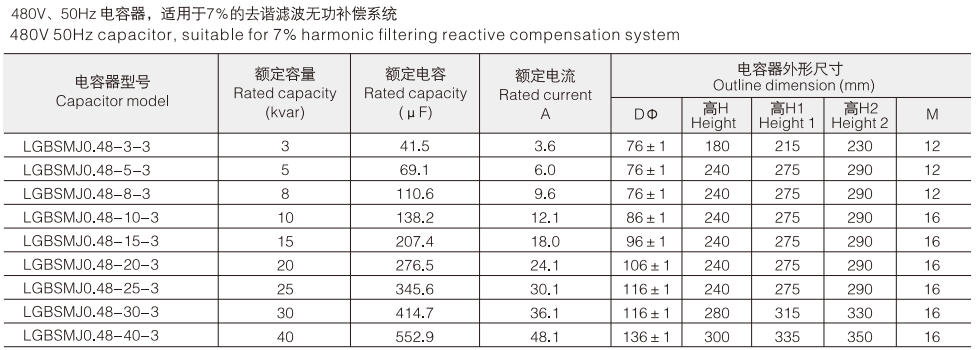

    Product specifications and dimensions.3.jpg

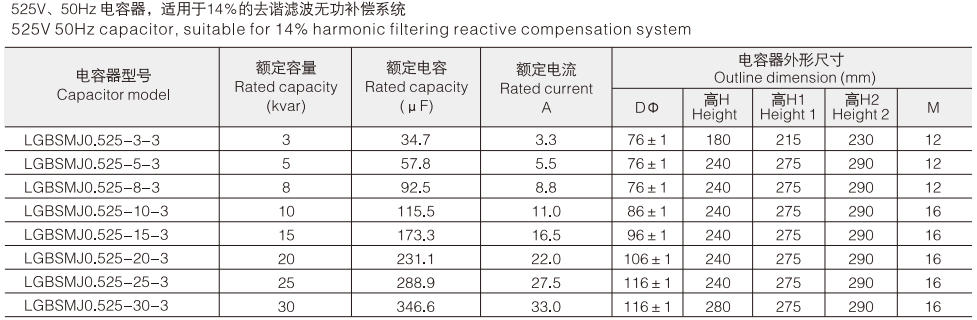

    Product specifications and dimensions.4.jpg

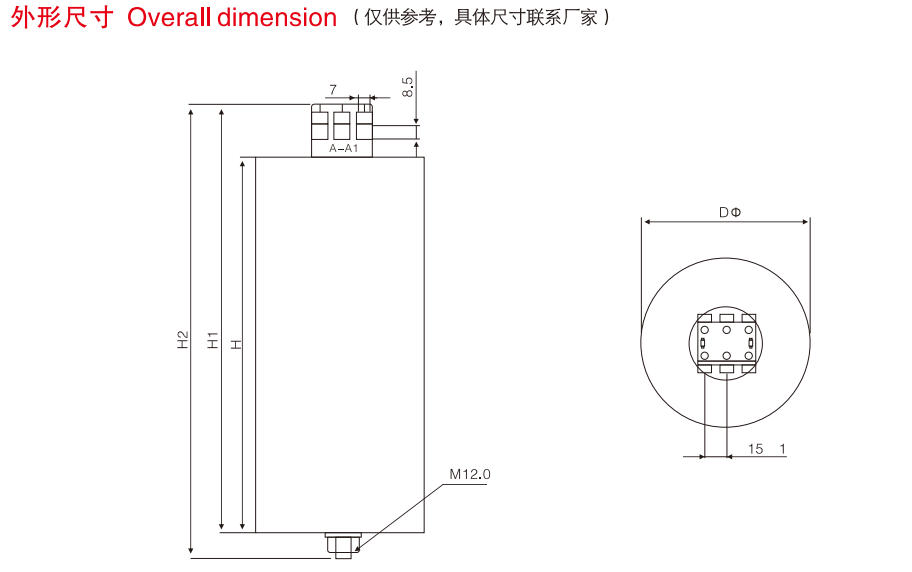

    External dimensions.jpg

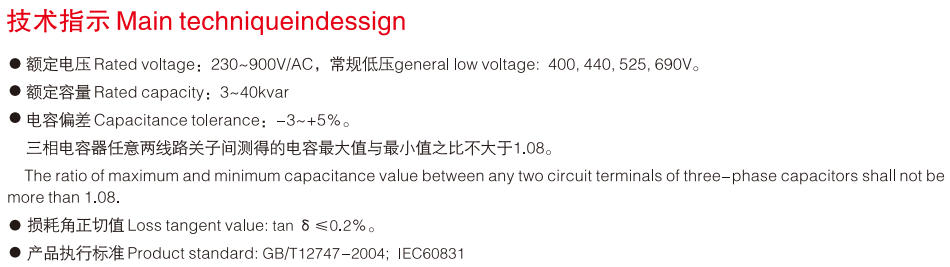

    Technical Instructions.jpg
