LGBSMJ Self-Healing Shunt Capacitor

The low voltage self-healing shunt capacitor produced by our company adopts the most advanced zinc-aluminum laminate metal film in current China, the advanced production process and technologies from abroad and advanced equipment from Japan and Korea, and it strictly complies with national standard GB/T12747-2004 and international standard lEC 60931-1. lt’s mainly used in low voltage power grid to increase the power factor, reduce reactive loss and improve voltage quality.

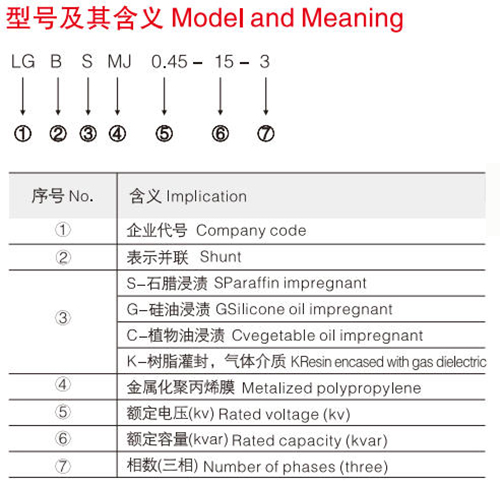

    Model and meaning.jpg

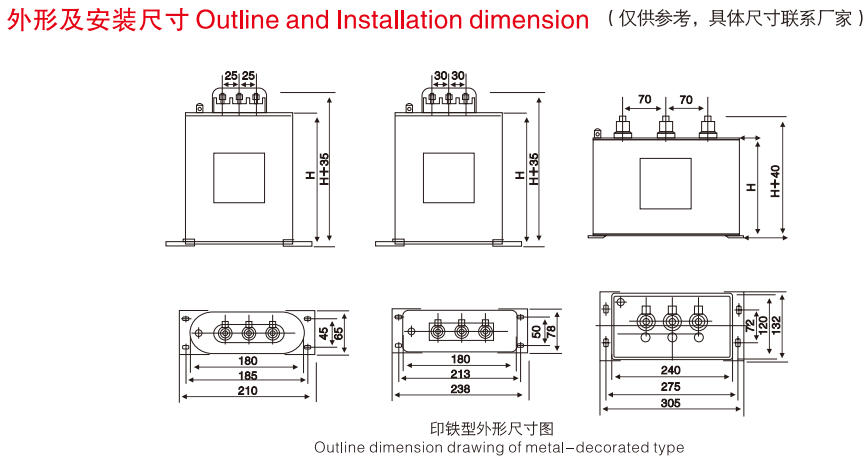

    External shape and installation dimensions.jpg

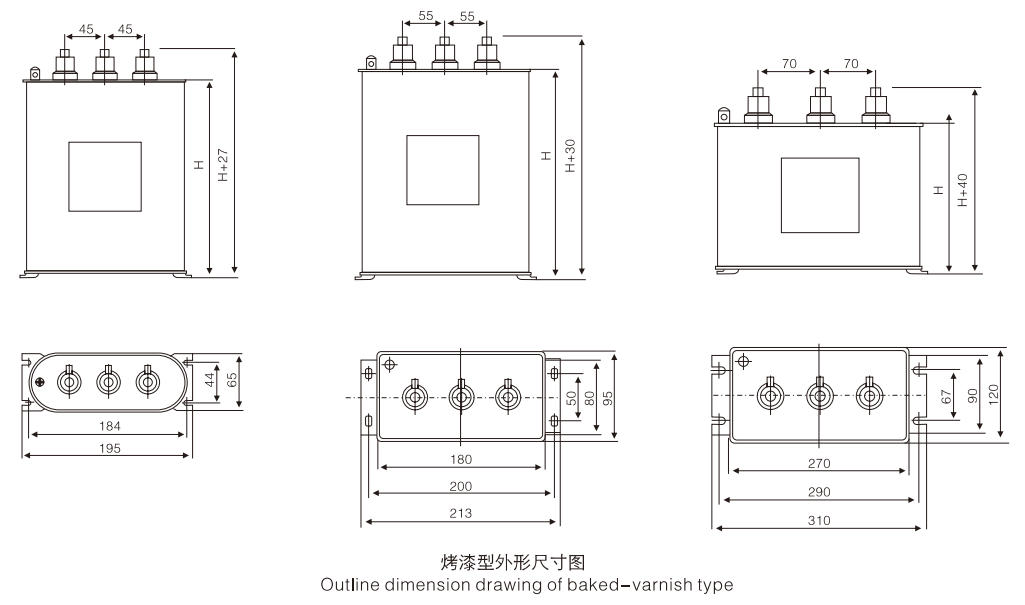

    External shape and installation dimensions.2.jpg

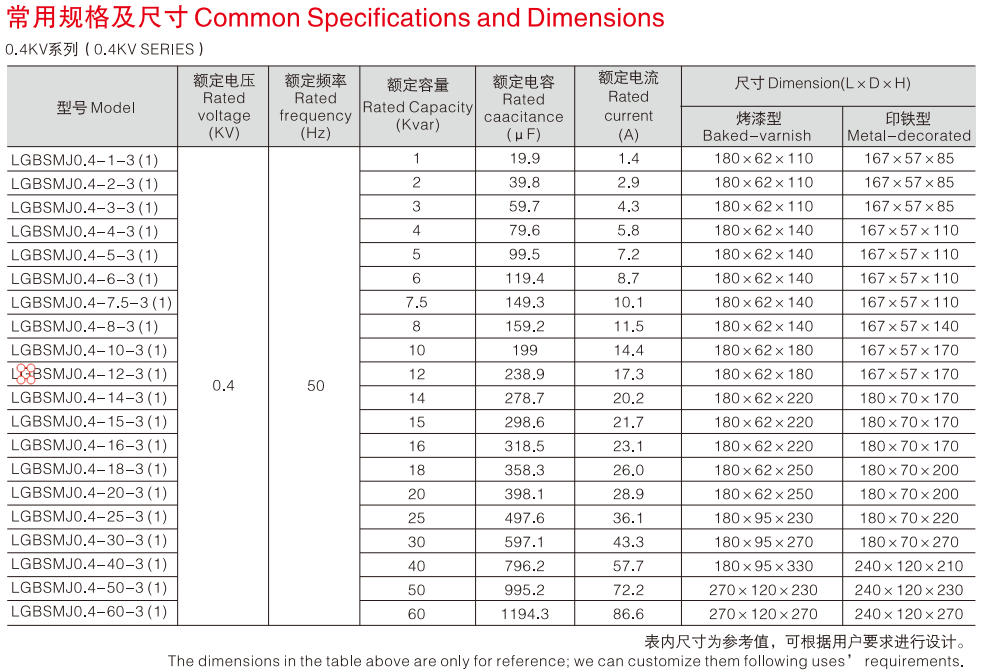

    Common specifications and dimensions.jpg

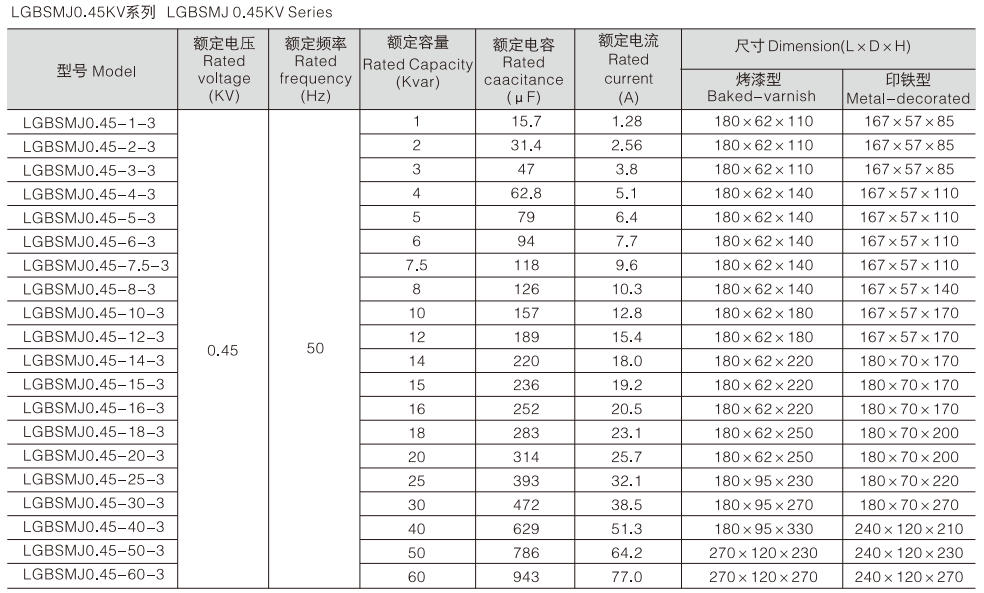

    Common specifications and dimensions.2.jpg

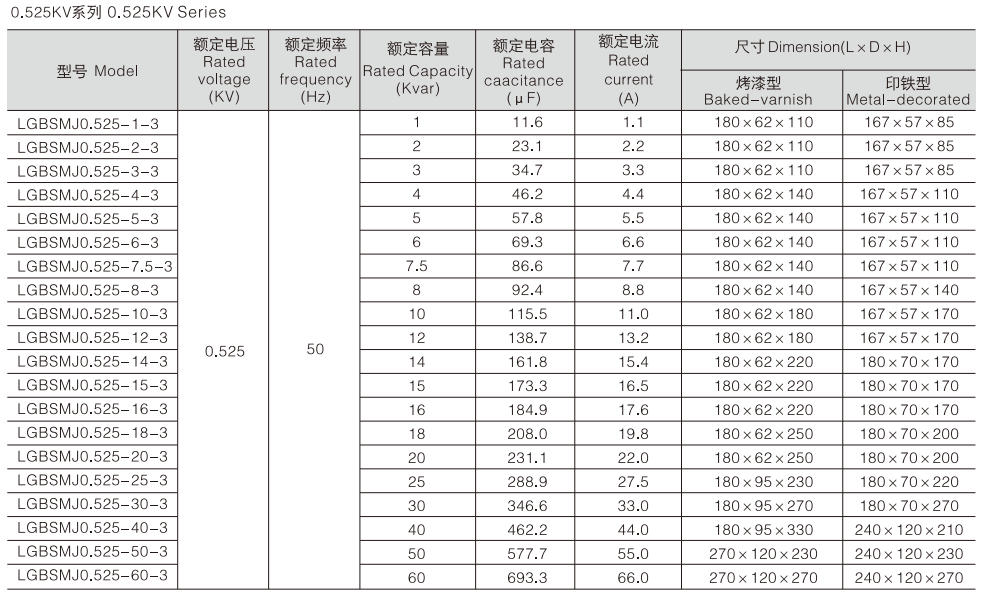

    Common specifications and dimensions.3.jpg

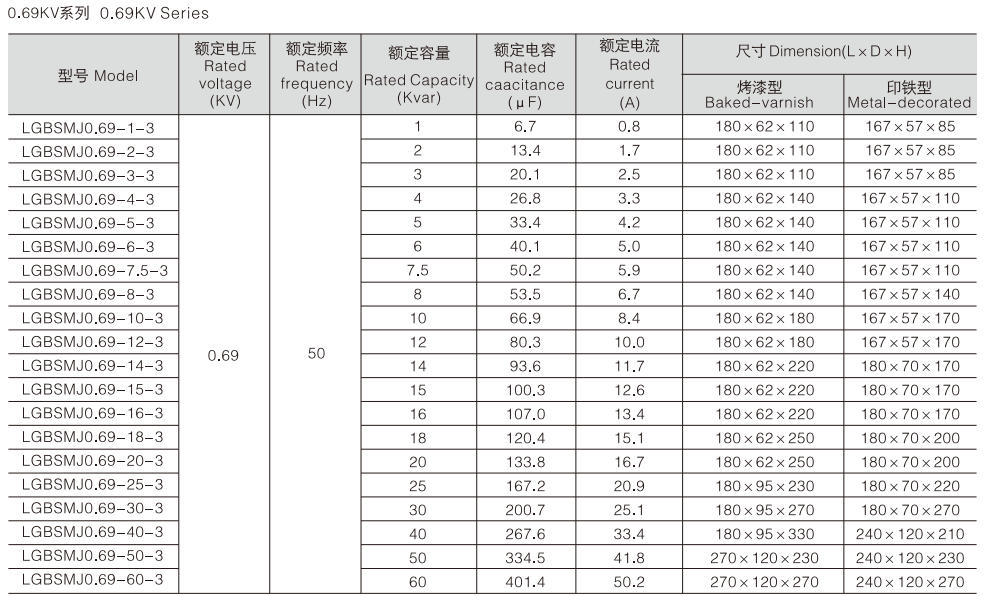

    Common specifications and dimensions.4.jpg

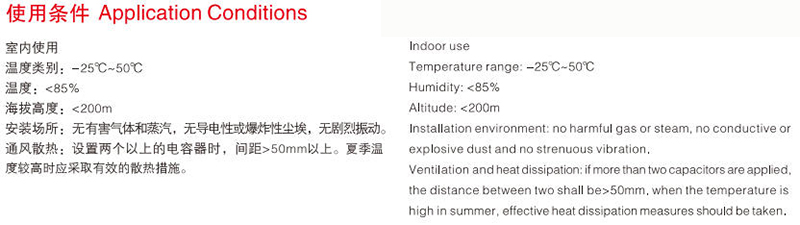

    Usage conditions.jpg

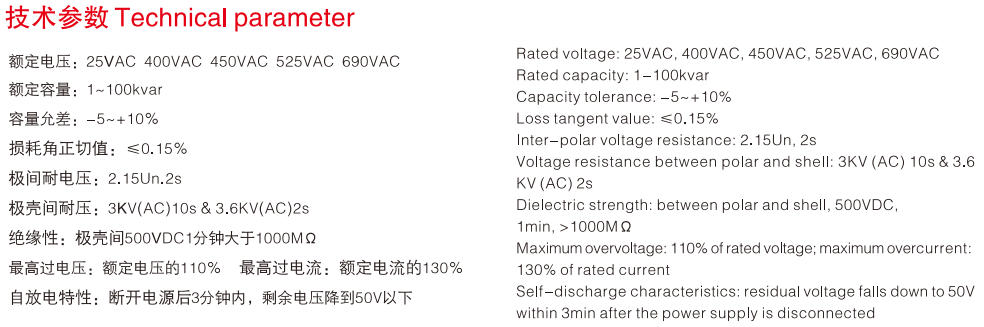

    Technical parameters.jpg
