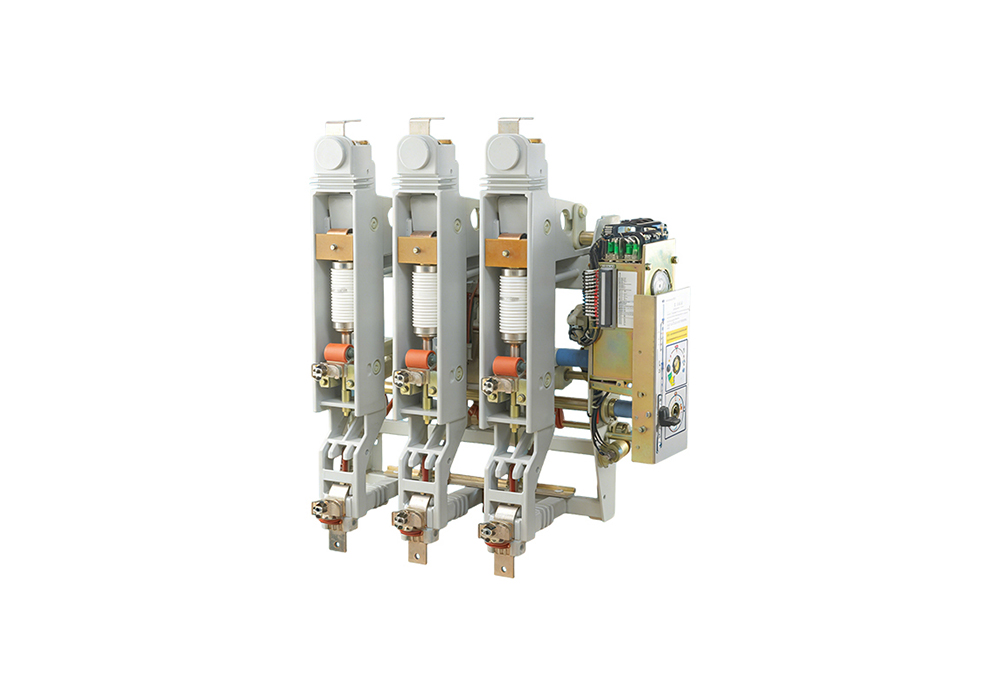

FZN/FZRN25-12DG/125-31.5 Indoor High-Voltage Vacuum Load Isolation Switch

In modern power distribution systems, safety, reliability, and efficiency are key factors driving the choice of equipment. Among the essential components, the High-Voltage Vacuum Load Break Switch emerges as a critical device used in medium-voltage networks across industrial, commercial, and utility applications. One dependable and high-performing example is the FZN/FZRN25-12DG/125-31.5 Indoor High-Voltage Vacuum Load Isolation Switch. In this article, we will explore its functionality, features, and the advantages it offers. We will also address common questions to provide a complete understanding of this indispensable product.

What is the Function of the Indoor High-Voltage Vacuum Load Break Switch?

Before diving into specifics, let’s address the primary function of this essential device. The indoor high-voltage vacuum load break switch, such as the FZN/FZRN25-12DG, is designed to interrupt and isolate electrical loads in medium-voltage power distribution networks. It can perform the following critical tasks:

• Interrupt the flow of electrical current without the risk of arcing, thanks to vacuum switching technology.
• Provide electrical isolation to ensure the safety of maintenance personnel working on connected equipment.
• Act as a protective measure by preventing electrical overload and short circuits.
• Facilitate the safe disconnection and reconnection of high-voltage electrical loads.

This makes the high-voltage vacuum load break switch indispensable in substations, industrial plants, and commercial power distribution networks. Used indoors, it offers robust performance while ensuring a compact footprint and minimal environmental impact.

Features of FZN/FZRN25-12DG/125-31.5

The FZN/FZRN25-12DG is an advanced high-voltage vacuum load isolation switch that has been meticulously engineered to address demanding requirements in power systems. Key features of this product include:

• Compact and modular design: A space-efficient structure allows for easy integration into switchgear equipment, making it ideal for indoor applications.
• Vacuum Interruption Technology: The device uses vacuum arc extinguishing chambers, ensuring reliable switching with minimal wear and long service life.
• High interrupting capability: Rated for currents up to 1250A and short-circuit breaking currents of 31.5kA, this makes it suitable for medium- to high-load applications.
• Mechanical durability: It is designed to handle over 10,000 operational cycles, ensuring long-lasting performance and reduced maintenance costs.
• Environmentally friendly: The absence of harmful gases like SF6 makes this switch a sustainable choice.
• Flexible operation: It supports various control methods, including manual and remote operation, catering to modern automation needs.

With these features, the FZN/FZRN25-12DG ensures operational reliability while sustainably delivering electrical load-break functionality.

Why Choose a High-Voltage Vacuum Load Break Switch?

The FZN/FZRN25-12DG offers several advantages that make it a preferred choice in medium-voltage power distribution systems:

1. Safety and Reliability: The vacuum technology used in the device ensures arc-free switching. It eliminates the risk of fire or equipment damage often associated with other types of switches.

2. Low Maintenance: With its mechanical durability, the need for frequent maintenance is significantly reduced, translating to lower operational costs over time.

3. High Efficiency: The switch provides fast and efficient load interruption, minimizing downtime during maintenance and system faults.

4. Environmentally Friendly: Unlike traditional SF6-based switches, the FZN/FZRN25-12DG is free of greenhouse gas emissions, aligning with global environmental standards.

These qualities make it particularly suitable for applications in industries such as energy production, transportation, and industrial manufacturing.

FAQs About Indoor High-Voltage Vacuum Load Break Switches

Q: What makes vacuum technology superior in load break switches?
A: Vacuum technology eliminates the risk of arcing by effectively extinguishing current in vacuum chambers. This improves safety, minimizes wear, and extends the lifespan of the device.

Q: Can the FZN/FZRN25-12DG handle high short-circuit currents?
A: Yes, this switch can handle short-circuit breaking currents of up to 31.5kA, making it highly reliable for medium-voltage systems.

Q: Is this switch suitable for modern smart grids?
A: Absolutely. It supports remote operation and control, making it compatible with advanced automation and smart grid requirements.

Q: What kind of maintenance does the FZN/FZRN25-12DG require?
A: Thanks to its robust and durable design, this switch requires minimal maintenance. Periodic inspections for mechanical and electrical components are usually sufficient.

Applications of the FZN/FZRN25-12DG/125-31.5

The versatility of the FZN/FZRN25-12DG makes it suitable for various applications:

Commercial Buildings: Ensures reliable and safe power distribution in shopping malls, office complexes, and high-rise buildings.

Industrial Facilities: Ideal for manufacturing plants, refineries, and assembly areas requiring steady and secure electrical loads.

Substations and Utilities: Extensively used in substations to deliver uninterrupted power to residential and industrial customers.

Renewable Energy Systems: Provides an effective solution for controlling and isolating high-voltage components in solar and wind energy applications.

Wherever reliable and safe electrical isolation is required, this high-voltage vacuum load isolation switch ensures peak performance and peace of mind.

In conclusion, the FZN/FZRN25-12DG/125-31.5 Indoor High-Voltage Vacuum Load Isolation Switch delivers the advanced functionality and safety features essential for modern power distribution systems. Whether you’re managing a large industrial facility, a renewable energy installation, or a commercial building, this advanced switch ensures uninterrupted and efficient delivery of power while minimizing environmental impact. Its superior design and operational benefits set it apart as a trusted choice for professionals in the electrical industry. If you’re looking to enhance your power system’s reliability and safety, investing in this high-quality vacuum load break switch is a decision you won’t regret.
