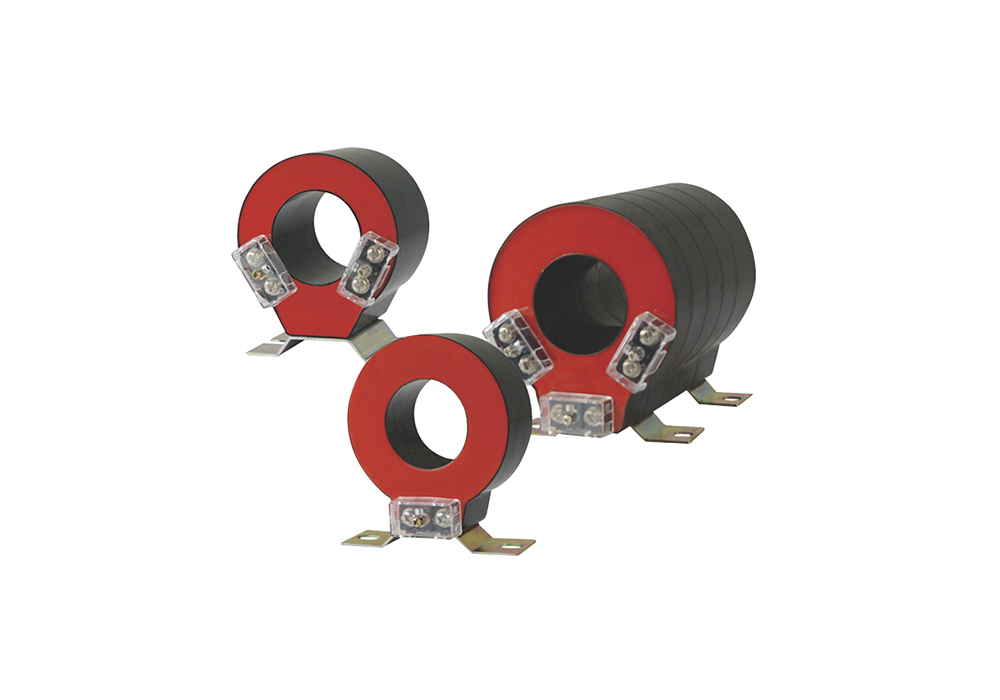

What is a Ring Main Unit Current Transformer?

A Current Transformer (CT) is a vital component in electrical power systems, serving as an essential instrument for measuring and monitoring current flow. Specifically, a Ring Main Unit (RMU) Current Transformer plays a critical role in medium-voltage power distribution networks, offering accurate current measurement, protection, and control. In this article, we’ll take a closer look at what a Ring Main Unit Current Transformer is, where it’s used, and why it’s a crucial element in electrical applications.

Understanding the Role of Current Transformers in Ring Main Units

A Ring Main Unit (RMU) is a compact, enclosed type of switchgear used in medium-voltage distribution networks. It facilitates the safe and reliable distribution of electrical power to interconnected grids, utilities, and substations. Embedded within this system, the current transformer is an integral component that ensures the RMU operates effectively and efficiently.

Current transformers are designed to step down high electrical currents to manageable levels, making it easier to measure and monitor current in live power systems. They are crucial for the operation of protection relays, meters, and other control devices in RMUs, as these instruments require relatively small current values to function accurately. Without a CT within an RMU, it would be nearly impossible to handle high currents without compromising safety and performance.

Where is the Current Transformer Used?

Current transformers, especially those in ring main units, are widely used in various applications, including:

• Power Distribution Networks: Medium-voltage switchgear like RMUs relies on current transformers to provide safe and efficient current measurement and fault detection.
• Industrial Facilities: In industrial settings, RMUs with CTs help manage the distribution of power to equipment and ensure smooth operations.
• Renewable Energy Systems: Solar farms, wind energy systems, and other renewable solutions use RMUs with CTs to integrate the generated power into the grid while monitoring loads.
• Urban Infrastructure: High-rise buildings, hospitals, and data centers depend on RMUs with current transformers for uninterrupted power supply and system protection.

Why are Current Transformers Used in Ring Main Units?

Ring Main Unit Current Transformers have a number of specific benefits, making them indispensable in modern electric systems:

1. Protection: By providing precise current measurements, current transformers help trigger protection mechanisms during abnormal conditions, such as overcurrent or short circuits.

2. Metering and Monitoring: CTs supply accurate current readings to energy meters and monitoring devices, enabling facilities to track energy consumption and prevent overload conditions.

3. Compact Design: The incorporation of current transformers allows RMUs to maintain their compact size while still delivering the required electrical performance in space-constrained environments.

4. Ease of Integration: Current transformers are designed to integrate seamlessly with relays, breakers, and other equipment, facilitating straightforward installation and operation.

Technical Specifications of RMU Current Transformers

When selecting a current transformer for an RMU, it’s important to consider its technical specifications to ensure compatibility and appropriate performance. Some of the key parameters include:

• Primary Current Rating: The maximum current the CT can handle on the primary side.
• Secondary Current Rating: The reduced current output on the secondary side, typically 1A or 5A.
• Accuracy Class: Defines the error tolerance of the CT during operation, such as 0.2, 0.5, or 1.0 class.
• Burden: The load (in volt-amperes) on the secondary side that the CT is designed to handle.

Key Factors to Consider When Choosing a Ring Main Unit Current Transformer

When selecting a current transformer for your RMU, careful consideration should be given to factors such as:

1. System Voltage: Ensure the CT is suitable for the RMU’s rated voltage and application.

2. System Frequency: Match the CT to the frequency of the power system, commonly 50Hz or 60Hz.

3. Environmental Conditions: Consider factors like temperature, humidity, and mechanical stress when choosing a CT to ensure reliable operation.

4. Certification Standards: Verify that the CT complies with industry standards such as IEC or ANSI, ensuring safety and performance.

FAQ on Current Transformers

1. Where is the current transformer used?

Current transformers are commonly used in electrical systems for measurement and protection purposes. In particular, they are a critical component of ring main units, power distribution networks, industrial facilities, renewable energy installations, and urban infrastructures requiring reliable and safe power distribution.

2. How does a current transformer work in an RMU?

A current transformer in an RMU reduces the high current passing through the primary winding to a lower, more manageable current on the secondary side. This scaled-down current is then used by protective relays and metering equipment for accurate monitoring and prompt fault detection.

3. Can you use a regular current transformer in an RMU?

Not all current transformers are suitable for RMUs. It’s important to use high-quality current transformers that meet the specific voltage, current, and environmental requirements of the RMU application.

4. What happens if a current transformer fails?

If a current transformer in an RMU fails, it may result in inaccurate readings, ineffective protection, and an increased risk of faults in the power system. This highlights the importance of regular maintenance and the use of reliable equipment.

Future Trends in Ring Main Unit Current Transformers

As energy systems evolve with the increasing adoption of digital technology and renewable energy, current transformers in ring main units are also advancing. The industry is witnessing innovations such as digital CTs, which offer real-time data and better analytics, as well as designs that integrate seamlessly with smart grids. Furthermore, there is a growing emphasis on sustainability, with manufacturers developing environment-friendly materials and designs to meet global energy efficiency standards.

These advancements are not only making RMU Current Transformers more efficient but are also enabling the power industry to meet the demands of modern infrastructures and energy systems. Choosing the right current transformer for your application will ensure the reliability of your power system, reduce operational risks, and contribute to long-term cost savings.

In conclusion, the Ring Main Unit Current Transformer is an indispensable component for modern power distribution systems. By ensuring accurate current monitoring and protecting critical equipment, it plays a key role in maintaining the stability and efficiency of electrical grids. Investing in high-quality current transformers tailored to your system’s needs will ensure consistent performance while addressing future demands in an ever-evolving energy landscape.
