What is a Voltage Transformer?

A Voltage Transformer, also known as a potential transformer, is a device designed to step down high voltages to safer, measurable levels. This is critical for monitoring, control, and protection in power systems. Voltage transformers are widely used in various applications, including industrial facilities, substations, and ring main units (RMUs). But what exactly is their purpose, and why are they particularly important in RMUs? Let’s explore.

Definition and Core Functions of a Voltage Transformer

At its core, a voltage transformer is an electromagnetic device that converts high voltage levels into lower ones while maintaining proportional accuracy. This transformation is essential for measuring instruments, energy meters, and relay protection systems. These transformers ensure that equipment used to monitor voltage can operate safely and efficiently.

Voltage transformers consist of primary and secondary windings, designed to ensure minimal energy loss and high accuracy. The primary winding connects to the high voltage system, while the secondary winding provides reduced voltage measurements that are compatible with monitoring devices.

The Role of a Voltage Transformer in Ring Main Units

A Ring Main Unit (RMU) is an essential component of medium-voltage distribution networks. It provides safe and reliable power supply while offering flexibility for switching operations. RMUs are commonly used in urban areas and industrial plants due to their compact design, ease of installation, and reliability.

Voltage Transformers, specifically designed for RMUs, play a crucial role in ensuring the system operates smoothly. Here are their primary functions:

• Voltage Measurement: The transformer provides accurate voltage readings, allowing for real-time monitoring and control within the RMU.
• System Protection: By feeding reduced voltage signals to protection relays, the voltage transformer ensures that faults, such as overvoltages, are detected and mitigated promptly.
• Ensured Safety: High-voltage systems pose significant risks. A voltage transformer enables safe measurement and monitoring without exposing personnel or equipment to dangerous voltage levels.

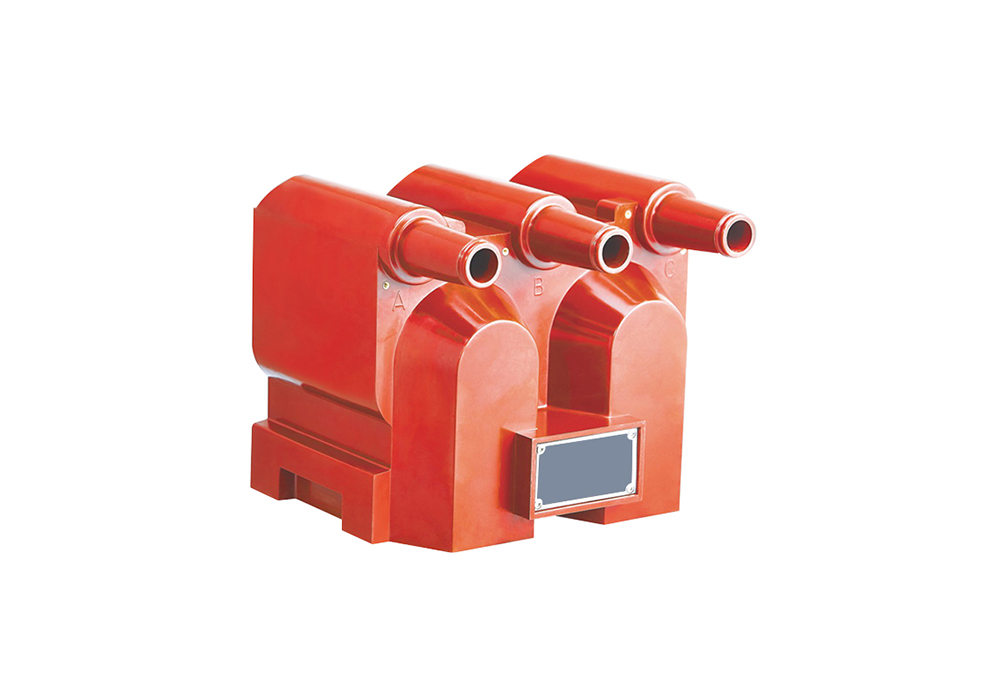

A specialized Ring Main Unit Voltage Transformer adds value by optimizing compatibility and performance for the unique environment of RMUs, where compactness and reliability are key requirements.

Why Accuracy Matters in Voltage Transformers?

Accurate voltage measurement is vital in power systems, particularly in RMUs where precise control and monitoring directly influence efficiency and safety. Voltage transformers are designed to offer high fidelity in transforming voltage, ensuring system stability and minimizing errors. Any discrepancy in voltage readings can compromise protection systems and lead to inefficiencies or outages.

Modern voltage transformers used in RMUs are built to handle stringent requirements concerning accuracy and durability, making them an indispensable element of today’s electrical infrastructure.

Frequently Asked Questions (FAQ)

What is the function of a voltage transformer used in a ring main unit?

The function of a voltage transformer in an RMU is to step down high voltage levels to a safer, measurable range. This allows instruments to monitor voltage accurately, activate protection mechanisms during disruptions, and ensure safe operation within distribution networks.

What is the difference between a voltage transformer and a current transformer?

While both devices are used for electrical measurement, voltage transformers focus on scaling down voltage for measurement purposes, whereas current transformers are concerned with reducing current levels. Both are key to precise system monitoring and protection.

Are voltage transformers in RMUs standardized?

Yes, voltage transformers designed for RMUs often adhere to industry standards to ensure compatibility and reliability. Manufacturers ensure that these transformers meet stringent criteria for accuracy, safety, and durability.

How should I choose a voltage transformer for my ring main unit?

When choosing a voltage transformer for an RMU, consider its accuracy class, rated primary and secondary voltages, and compliance with industry standards. Always consult with manufacturers or specialists to ensure the transformer meets your specific requirements.

Emerging Trends in Voltage Transformers

Recent advancements in voltage transformer design are focused on optimizing efficiency, reducing energy losses, and improving overall durability. With the rise of smart grids, voltage transformers are becoming increasingly integrated with IoT systems, allowing for automated monitoring and digitalized control. This trend ensures compatibility with modern ring main units that prioritize automation and connectivity.

Furthermore, environmental concerns have led manufacturers to explore eco-friendly materials and designs to minimize the impact of voltage transformers within electrical networks.

Innovations such as these help businesses future-proof their electrical infrastructure while maintaining optimal performance and reliability.

Final Takeaway: Voltage transformers are integral components in electrical systems, playing a critical role in monitoring, control, and safety. Their importance in Ring Main Units cannot be understated, as they ensure smooth operation, precise measurement, and timely protection mechanisms. By choosing the right transformer tailored to your needs and staying up-to-date with technological advancements, you can ensure reliable and efficient power distribution for your operations.
