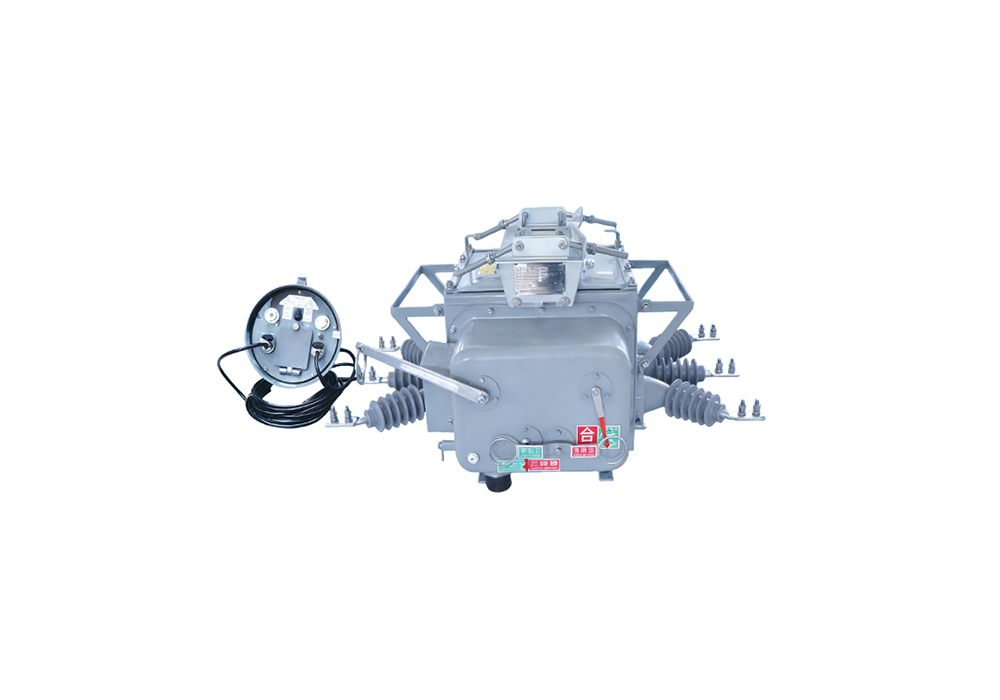

ZW20Z-12 Series Outdoor High Voltage Vacuum Circuit Breaker

The ZW20Z-12 Series Outdoor High Voltage Vacuum Circuit Breaker is a versatile and essential component in modern power distribution networks. Designed to ensure safety, reliability, and efficiency, these circuit breakers are specifically engineered to handle high-voltage outdoor applications. In this guide, we’ll explore how these breakers operate, their key features, advantages, and answers to common questions. Whether you're considering upgrading your electrical grid or exploring system protection solutions, this article is tailored to meet your needs.

Overview of the ZW20Z-12 Outdoor High Voltage Vacuum Circuit Breaker

The ZW20Z-12 series uses vacuum switching technology to interrupt high-voltage currents in outdoor environments. Vacuum circuit breakers are well-regarded for their reliability, compact size, and low maintenance, making them ideal for industrial, commercial, and utility applications. This series stands out due to its ability to function effectively under extreme weather conditions while ensuring a long operational life.

Engineered for high-performance protection, the ZW20Z-12 is capable of isolating faults quickly and is especially useful in medium and high-voltage distribution systems. Its weather-resistant compact design and eco-friendly properties ensure it meets global environmental and durability standards.

Key Features of the ZW20Z-12 Series

The ZW20Z-12 series of outdoor high-voltage vacuum circuit breakers come equipped with a variety of features that make them highly functional and efficient. Below are some of the critical attributes of this range:

• Advanced Vacuum Interruption Technology: Utilizes a vacuum interrupter to safely and efficiently handle large electrical loads and interruptions with minimal contact erosion.
• Long Service Life: The vacuum interrupters achieve high durability, greatly minimizing maintenance requirements and reducing operational costs.
• Weather-Resistant Design: The device is optimized for extreme outdoor conditions, including heat, cold, and moisture, making it suitable for varying climates.
• Smart Control Features: Many models in the ZW20Z-12 series offer remote monitoring and control through SCADA systems, allowing for real-time insights and flexibility.
• Environmentally Friendly: Unlike SF6 circuit breakers, vacuum circuit breakers don’t rely on greenhouse gases, making them a sustainable choice.

How Does an Outdoor High-Voltage Vacuum Circuit Breaker Operate?

High-voltage vacuum circuit breakers are designed to interrupt current by separating its contacts within a vacuum environment. When a fault occurs, the breaker’s relay system sends a signal to open the contacts, instantly creating an arc. This arc is subsequently extinguished as the metal vapor condenses rapidly in the vacuum due to the absence of insulation gases.

The quick interruption stops the electrical flow in milliseconds, protecting the system from damage due to overcurrents, short circuits, or other anomalies. After clearing the fault, the breaker can be reclosed either manually or remotely, restoring the electrical system to normal operation. This mechanism ensures fast and efficient isolation of faults while minimizing the risk of electrical fires or equipment damage.

Applications of ZW20Z-12 Series Outdoor High Voltage Vacuum Circuit Breakers

The ZW20Z-12 series caters to several industrial and commercial sectors, thanks to its robust design and reliable performance. Typical applications include:

• Power distribution networks
• Renewable energy installations
• Utilities and substations
• Industrial facilities
• Mining operations

These breakers are particularly suitable for protecting transformers, substations, and overhead power lines, ensuring uninterrupted operation and reliability in critical infrastructure systems.

Benefits of Choosing the ZW20Z-12 Series

Investing in high-voltage vacuum circuit breakers like the ZW20Z-12 series offers numerous advantages:

• Enhanced Safety: Fast fault isolation protects both equipment and personnel from electrical hazards.
• Cost Efficiency: Low maintenance needs and operational longevity contribute to cost savings in the long term.
• Remote Operability: Integration with automation systems allows for efficient management and real-time monitoring.
• Environmental Responsibility: The vacuum technology ensures that the breaker is free of harmful gases, making it eco-friendly.

FAQ: Common Questions About High-Voltage Vacuum Circuit Breakers

Q: How does an outdoor high-voltage vacuum circuit breaker operate?
A: An outdoor high-voltage vacuum circuit breaker operates by using a vacuum as an arc-extinguishing medium. When a fault occurs, the breaker’s contacts separate, creating an arc that is quickly extinguished in the vacuum. This process isolates the fault and protects the system components.

Q: What are the key advantages of using vacuum circuit breakers?
A: Vacuum circuit breakers offer fast and reliable fault interruption, require minimal maintenance, have a long lifecycle, and are environmentally friendly as they do not use harmful greenhouse gases.

Q: In what applications can I use a ZW20Z-12 outdoor high voltage vacuum circuit breaker?
A: These breakers are ideal for outdoor settings like substations, industrial facilities, renewable energy systems, and utility networks. They excel in protecting transformers, overhead lines, and other infrastructure components.

Q: Are vacuum circuit breakers better than other types of breakers?
A: Vacuum circuit breakers are particularly advantageous in medium and high-voltage applications due to their durability, small size, and environmental benefits. However, the choice between circuit breaker types depends on the specific requirements of your electrical system.

Final Thoughts

The ZW20Z-12 Series Outdoor High Voltage Vacuum Circuit Breaker stands as a modern and efficient solution for ensuring the safety and reliability of power distribution systems. With its advanced vacuum technology, impressive durability, and adaptability to outdoor conditions, it is a go-to choice for industries and grid operators worldwide. When considering high-voltage switchgear options, prioritizing durable, eco-friendly, and cost-effective equipment like the ZW20Z-12 series will ensure long-term benefits and dependable operation.
