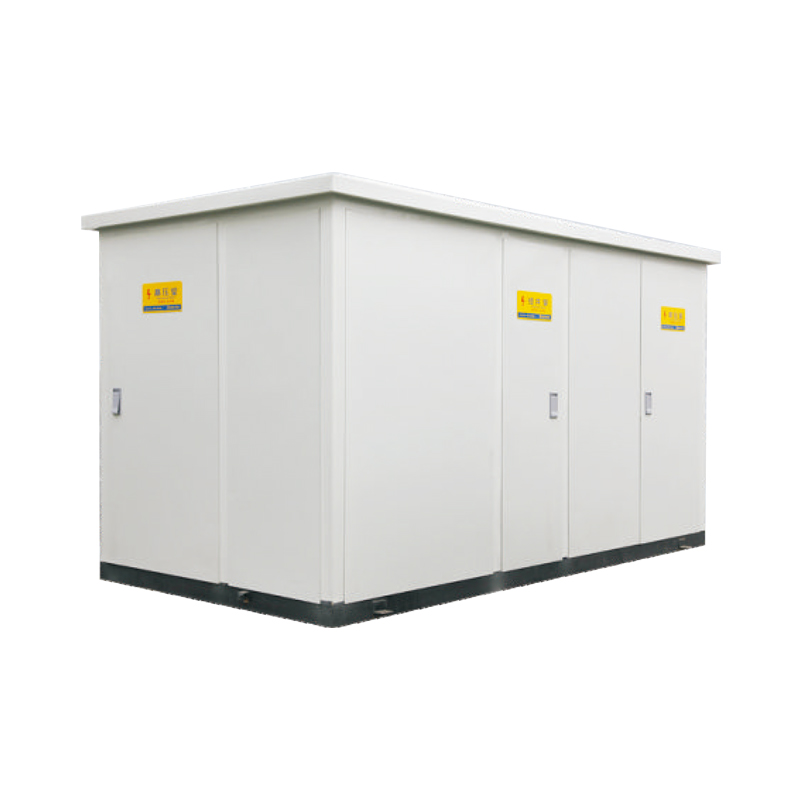

YBWF/G-40.5/0.69 Wind Power Transformer/Photovoltaic Power Transformer

40.5kV and 12kV box-type step-up transformers for wind power and photovoltaic (solar) applications. Designed for the growing renewable energy market, these transformers efficiently boost the standard 690V output from wind turbines or solar panels to a higher voltage (40.5kV/12kV) for effective power collection and transmission within the farm grid. They are engineered to meet the specific demands and environmental conditions of renewable energy projects in China.

Product Details

Product Model

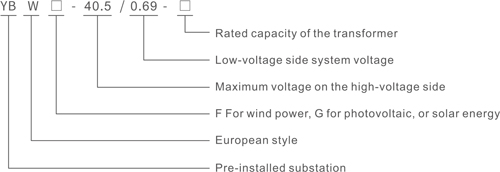

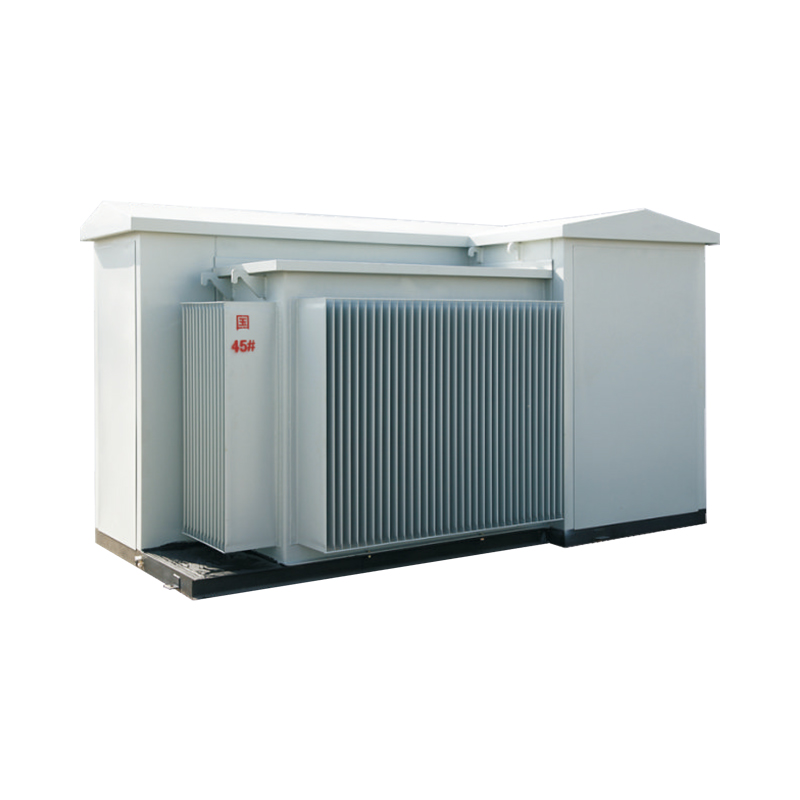

YBWFG-40.50.69 Wind Power TransformerPhotovoltaic Power Transformer.jpg

Technical Parameters

Serial Number	Item	Unit	Parameter
1	Rated frequency	Hz	50
2	System voltage	kV	10	35
3	Maximum operating voltage	kV	12	40.5
4	Rated current of the switch	A	400、630、1250
5	Transfer current of the switch	A	1000-3150
6	Rated short-time withstand current	kA	12.5(2s or 4s)、16(2s or 4s)、20(2s or 4s)
7	Rated peak withstand current	kA	31.5、40、50
8	Power frequency withstand voltage(for ground and phase isolation)	kV	42/48	95/115
9	Lightning impulse withstand voltage(for ground and phase isolation)	kV	75/85	185/215
10	Rated short-circuit breaking current(current-limiting fuse)	kA	31.5
11	Breaking capacity of no-load transformer	kVA	1250	2500

Product Functions

◆Steps up the voltage from 690V (standard generator output) to 40.5kV or 12kV.

◆Enables efficient long-distance power transmission within wind farms and photovoltaic (PV) solar farms.

◆It facilitates the connection of each power generation unit to the central substation in a one-to-one configuration.

Applicable Environment

◇Altitude: ≤1000m.

◇Ambient Temperature: -25℃ to +50℃.

◇Relative Humidity: ≤95% daily average; ≤90% monthly average.

◇Max. Outdoor Wind Speed: 35 m/s.

◇Location: Free from severe vibration, fire, explosion hazards, and heavy pollution. Tolerates mild dust/smoke/salt spray (Pollution Degree ≤II).

◇Seismic Conditions: Seismic intensity level VII.

◇Horizontal acceleration ≤0.2m/s², Vertical acceleration ≤0.1m/s² (Safety factor 1.67).

Product Highlights

◆Application-Tailored: Specifically engineered for wind power and photovoltaic power generation systems.

◆Robust Construction: Built to withstand challenging outdoor environmental conditions common to renewable energy sites.

◆Compliance Ready: Designed to operate under defined seismic and pollution level standards.
