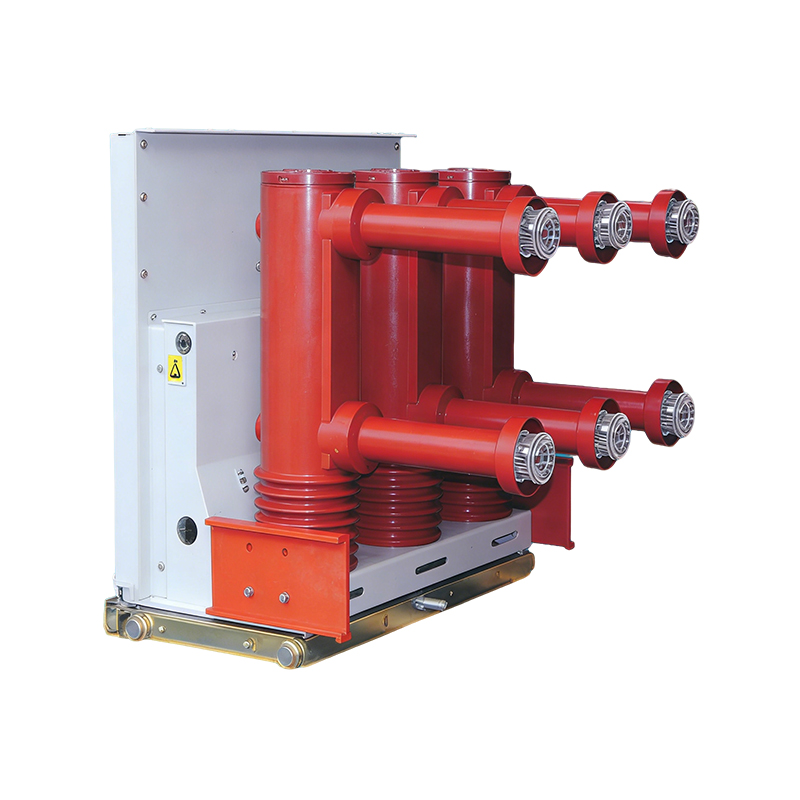

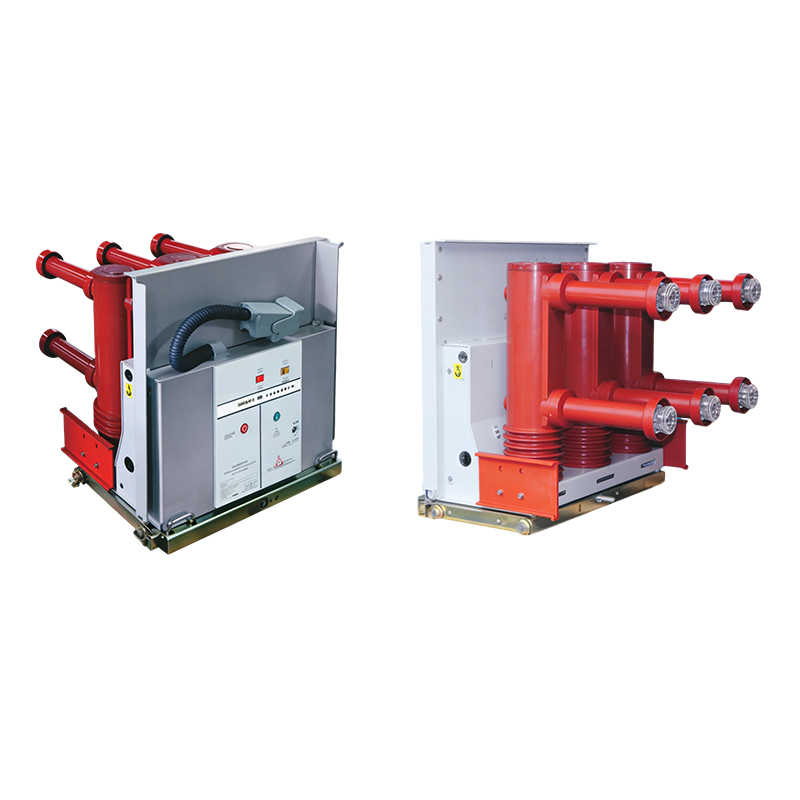

ZN63(VS1)-24 Indoor High Voltage Vacuum Circuit Breaker
Technical specification
|
NO. |
Item |
Units |
Parameters |
||
|
1 |
Rated voltage |
kV |
24 |
||
|
2 |
Rated frequency |
Hz |
50 |
||
|
3 |
Rated current |
A |
630 |
1250 |
1600 |
|
4 |
Rated short-circuit breaking current |
kA |
20 |
25 |
31.5 |
|
5 |
Rated short-circuit closing current(peak) |
kA |
50 |
63 |
80 |
|
6 |
Rated short-circuit duration |
S |
4 |
||
|
7 |
Rated short-circuit breaking current breaking times |
Times |
20 |
||
|
8 |
Rated operating sequence |
|
O-0.3s-CO-180s-CO |
||
|
9 |
Rated lightning impulse withstand voltage(fracture) |
kV |
125 |
||
|
|
1 min power frequency withstand voltage(fracture) |
kV |
65 |
||
|
10 |
Closing time |
ms |
≤100 |
||
|
11 |
Opening time |
ms |
≤50 |
||
|
12 |
Mechanical life |
Times |
20000 |
||
|
13 |
Rated storage and operation voltage |
v |
~220/110(AC/DC 220/110) |
||
|
14 |
Breaking life |
ms |
≤65 |
||
|
15 |
Energy storage time |
s |
≤10 |
||

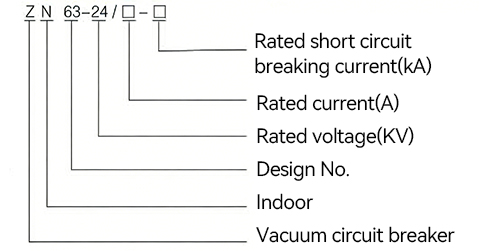

Product Model

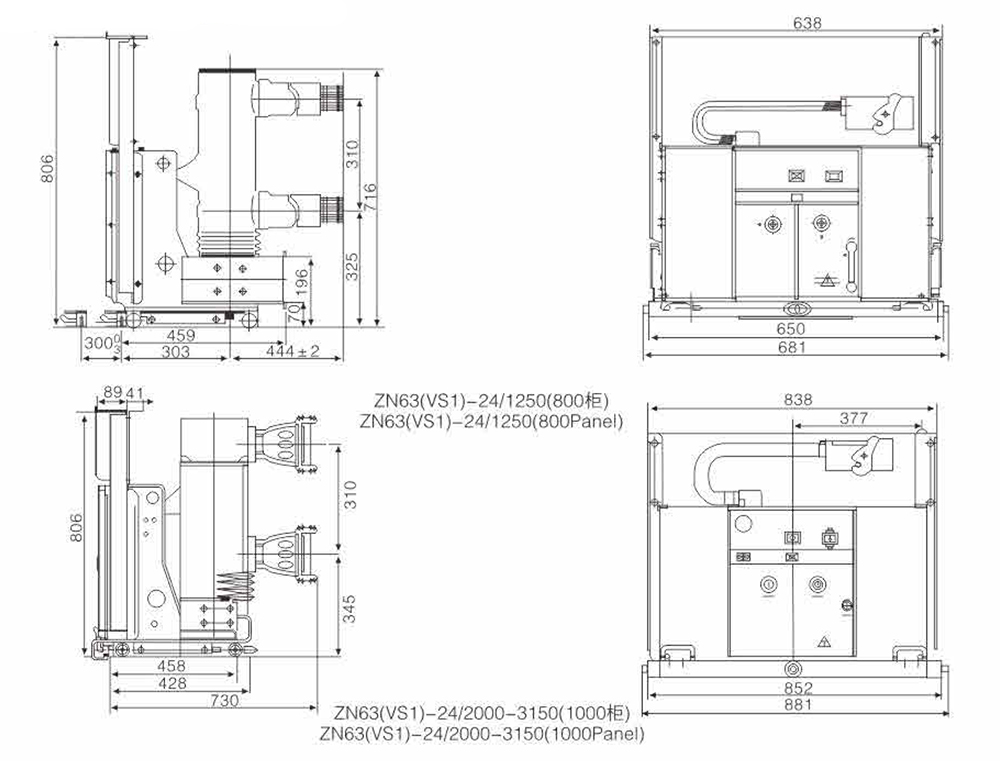

Dimension
Product Functions
◆Circuit Control & Protection: Provides comprehensive control and protection for transmission and distribution systems in power stations and industrial facilities.
◆Frequent Operation Handling: Engineered for applications requiring frequent switching, especially in demanding industrial environments.
◆Dual Operation Modes: Spring energy storage mechanism supports AC/DC electric operation and manual operation for flexibility.
◆Extended Mechanical Life Option: Available with long-life permanent magnetic actuator rated for 60,000 mechanical operations for ultra-frequent duty cycles.
◆Flexible Configuration: Designed with repackable front/rear structure for use as fixed installation unit or with chassis as handcart mounted unit.
Applicable Environment
◇Temperature Range: Reliable operation in ambient temperatures from -15℃ to +40℃.
◇Installation Altitude: Designed for elevations up to 1000 meters.
◇Humidity Tolerance: Withstands daily average humidity ≤95% and monthly average ≤90%.
◇Seismic Resistance: Capable of withstanding earthquake intensity up to 8 degrees.
◇Air Quality: Suitable for locations free from corrosive gases, flammable vapors, and significant pollution.
Product Highlights
◆High Altitude Specialization: Specifically engineered for important high altitude installations, making it ideal for mountainous regions and elevated substations.◆Flexible Handcart & Fixed Configurations: Innovative repackable front/rear structure allows conversion between fixed installation and handcart mounted unit, maximizing application versatility.
◆Multiple Operation Modes: Spring energy storage mechanism accepts AC or DC power for electric operation, with manual backup capability ensuring functionality during power outages.
◆Comprehensive Standards Compliance: Manufactured in accordance with GB1984-2003 and relevant IEC standards, ensuring reliable performance and international acceptance.
◆Reliable Interlock Function: Built with reliable interlock mechanisms for operator safety and prevention of maloperation.
